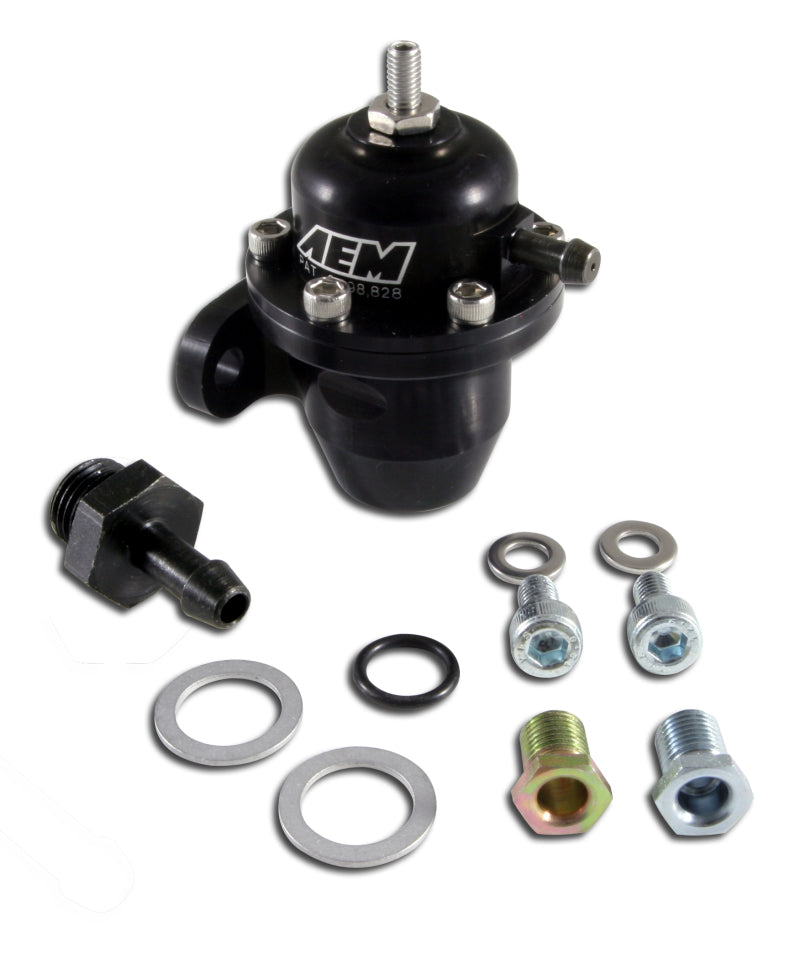

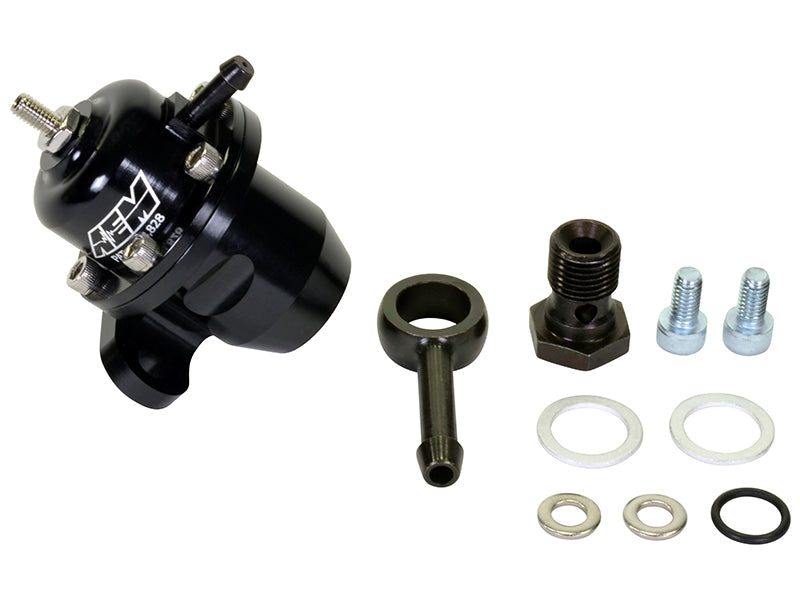

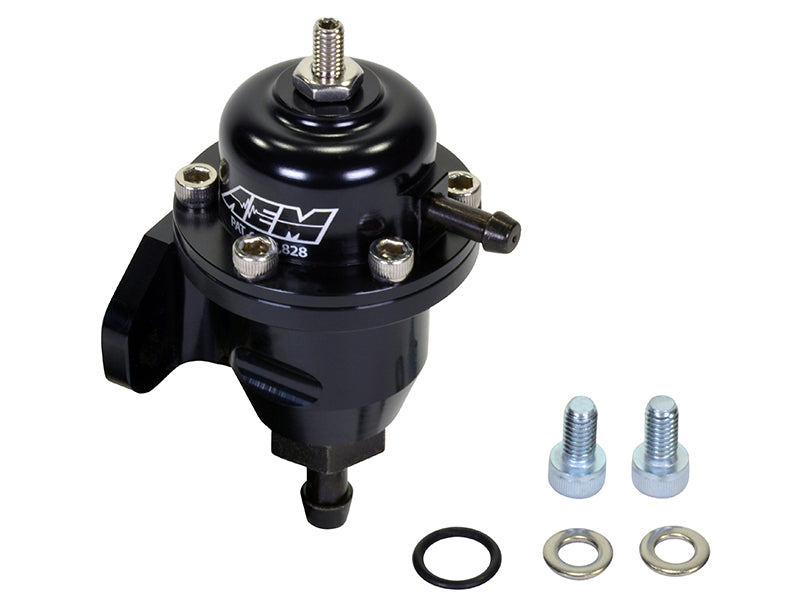

AEM Honda/Acura Adjustable Fuel Pressure Regulators
PN: 25-300BK/25-301BK/25-303BK/25-304BK (Instructions)
PN: 25-392 (Instructions)
AEM's Honda/Acura Adjustable Fuel Pressure Regulators are capable of supporting enough fuel flow for engines up to 1000 horsepower. Our patented interchangeable discharge ports enable the regulator's output to match the output of any fuel pump. A single large discharge orifice is included. AEM includes a custom barb fitting to accommodate the factory fuel hose and the base of each regulator is tapped to accept a -6 AN or 9/16"x18 fittings.
Features
- CNC-machined from 6061-T6 billet aluminum
- Mounts directly to O.E. fuel rail or AEM High Volume Fuel Rail
- Patented interchangeable discharge orifices match output of virtually any fuel pump (single large port included)
- Accept a -6 AN or 9/16”x18 fittings
- Adjustable from 20 psi to maximum fuel pump capacity
- Boost dependent rising fuel pressure rate (1:1)
- No additional parts required for installation
- Patent # 6,298,828
Applications
PART #
|
MAKE
|
YEAR
|
MODEL
|
ENGINE
|
NOTES
|
---|---|---|---|---|---|
25-304BK
|
Acura
|
1997
|
CL
|
2.2L/2156ccL4 [F22B1]
|
|
25-301BK
|
Acura
|
1998
|
CL
|
2.3L/2254ccL4 [F23A1]
|
|
25-304BK
|
Acura
|
1997
|
CL Premium
|
2.2L/2156ccL4 [F22B1]
|
|
25-301BK
|
Acura
|
1998-1999
|
CL Premium
|
2.3L/2254ccL4 [F23A1]
|
|
25-303BK
|
Acura
|
1990-1993
|
Integra GS
|
1.8L/1834ccL4 [B18A1]
|
|
25-300BK
|
Acura
|
1997-2001
|
Integra GS
|
1.8L/1834ccL4 [B18B1]
|
|
25-303BK
|
Acura
|
1992-1993
|
Integra GS-R
|
1.7L/1678ccL4 [B17A1]
|
|
25-300BK
|
Acura
|
1994-2001
|
Integra GS-R
|
1.8L/1797ccL4 [B18C1]
|
|
25-303BK
|
Acura
|
1986-1989
|
Integra LS
|
1.6L/1590ccL4 [D16A1]
|
|
25-303BK
|
Acura
|
1990-1993
|
Integra LS
|
1.8L/1834ccL4 [B18A1]
|
|
25-300BK
|
Acura
|
1994-2001
|
Integra LS
|
1.8L/1834ccL4 [B18B1]
|
|
25-303BK
|
Acura
|
1987-1988
|
Integra LS Special Edition
|
1.6L/1590ccL4 [D16A1]
|
|
25-303BK
|
Acura
|
1986-1989
|
Integra RS
|
1.6L/1590ccL4 [D16A1]
|
|
25-303BK
|
Acura
|
1990-1993
|
Integra RS
|
1.8L/1834ccL4 [B18A1]
|
|
25-300BK
|
Acura
|
1994-1998
|
Integra RS
|
1.8L/1834ccL4 [B18B1]
|
|
25-300BK
|
Acura
|
1995-1996
|
Integra Special Edition
|
1.8L/1834ccL4 [B18B1]
|
|
25-300BK
|
Acura
|
1997-1998
|
Integra Type R
|
1.8L/1797ccL4 [B18C5]
|
|
25-300BK
|
Acura
|
2000-2001
|
Integra Type R
|
1.8L/1797ccL4 [B18C5]
|
|
25-303BK
|
Acura
|
1991-2001
|
NSX
|
3.0L/2977ccV6 [C30A1]
|
|
25-303BK
|
Acura
|
1997-1998
|
NSX
|
3.2L/3179ccV6 [C32B1]
|
|
25-303BK
|
Acura
|
1999-2001
|
NSX
|
3.2L/3179ccV6 [C32B1]
|
|
25-303BK
|
Acura
|
1999
|
NSX Alex Zanardi Edition
|
3.2L/3179ccV6 [C32B1]
|
|
25-303BK
|
Acura
|
1995-2002
|
NSX T
|
3.0L/2977ccV6 [C30A1]
|
|
25-303BK
|
Acura
|
1997
|
NSX T
|
3.2L/3179ccV6 [C32B1]
|
|
25-303BK
|
Acura
|
1998-2002
|
NSX T
|
3.2L/3179ccV6 [C32B1]
|
|
25-303BK
|
Acura
|
1995-1998
|
TL
|
2.5L/2451ccL5 [G25A4]
|
|
25-303BK
|
Acura
|
1996-1998
|
TL
|
3.2L/3206ccV6 [C32A6]
|
|
25-303BK
|
Acura
|
1995-1998
|
TL Premium
|
2.5L/2451ccL5 [G25A4]
|
|
25-303BK
|
Acura
|
1996-1998
|
TL Premium
|
3.2L/3206ccV6 [C32A6]
|
|
25-303BK
|
Acura
|
1992-1994
|
Vigor GS
|
2.5L/2451ccL5 [G25A1]
|
|
25-303BK
|
Acura
|
1992-1994
|
Vigor LS
|
2.5L/2451ccL5 [G25A1]
|
|
25-300BK
|
Honda
|
1993
|
Accord 10th Anniversary
|
2.2L/2156ccL4 [F22A1]
|
Must use AEM Fuel Rail
|
25-304BK
|
Honda
|
1996
|
Accord 25th Anniversary Edition
|
2.2L/2156ccL4 [F22B2]
|
|
25-300BK
|
Honda
|
1990-1993
|
Accord DX
|
2.2L/2156ccL4 [F22A1]
|
Must use AEM Fuel Rail
|
25-304BK
|
Honda
|
1994-1995
|
Accord DX
|
2.2L/2156ccL4 [F22B2]
|
|
25-304BK
|
Honda
|
1996
|
Accord DX
|
2.2L/2156ccL4 [F22B2]
|
|
25-304BK
|
Honda
|
1997
|
Accord DX
|
2.2L/2156ccL4 [F22B2]
|
|
25-301BK
|
Honda
|
1998-2002
|
Accord DX
|
2.3L/2254ccL4 [F23A5]
|
|
25-300BK
|
Honda
|
1990-1991
|
Accord EX
|
2.2L/2156ccL4 [F22A1]
|
Must use AEM Fuel Rail
|
25-300BK
|
Honda
|
1990-1991
|
Accord EX
|
2.2L/2156ccL4 [F22A4]
|
Must use AEM Fuel Rail
|
25-300BK
|
Honda
|
1991-1993
|
Accord EX
|
2.2L/2156ccL4 [F22A6]
|
Must use AEM Fuel Rail
|
25-304BK
|
Honda
|
1994-1997
|
Accord EX
|
2.2L/2156ccL4 [F22B1]
|
|
25-301BK
|
Honda
|
1998-2002
|
Accord EX
|
2.3L/2254ccL4 [F23A1]
|
|
25-301BK
|
Honda
|
1998-2002
|
Accord EX
|
2.3L/2254ccL4 [F23A4]
|
|
25-300BK
|
Honda
|
1990-1993
|
Accord LX
|
2.2L/2156ccL4 [F22A1]
|
Must use AEM Fuel Rail
|
25-304BK
|
Honda
|
1994-1997
|
Accord LX
|
2.2L/2156ccL4 [F22B2]
|
|
25-301BK
|
Honda
|
1998-2002
|
Accord LX
|
2.3L/2254ccL4 [F23A1]
|
|
25-301BK
|
Honda
|
1999-2002
|
Accord LX
|
2.3L/2254ccL4 [F23A4]
|
|
25-300BK
|
Honda
|
1986
|
Accord LXi
|
2.0L/1955ccL4 [BT]
|
|
25-300BK
|
Honda
|
1987-1989
|
Accord LXi
|
2.0L/1955ccL4 [A20A3]
|
|
25-300BK
|
Honda
|
1991
|
Accord SE
|
2.2L/2156ccL4 [F22A6]
|
Must use AEM Fuel Rail
|
25-300BK
|
Honda
|
1993
|
Accord SE
|
2.2L/2156ccL4 [F22A6]
|
Must use AEM Fuel Rail
|
25-304BK
|
Honda
|
1997
|
Accord SE
|
2.2L/2156ccL4 [F22B2]
|
|
25-301BK
|
Honda
|
2000
|
Accord SE
|
2.3L/2254ccL4 [F23A1]
|
|
25-301BK
|
Honda
|
2000
|
Accord SE
|
2.3L/2254ccL4 [F23A4]
|
|
25-301BK
|
Honda
|
2002
|
Accord SE
|
2.3L/2254ccL4 [F23A1]
|
|
25-301BK
|
Honda
|
2002
|
Accord SE
|
2.3L/2254ccL4 [F23A4]
|
|
25-300BK
|
Honda
|
1989
|
Accord SEi
|
2.0L/1955ccL4 [A20A3]
|
|
25-304BK
|
Honda
|
1996-1997
|
Accord Value Package
|
2.2L/2156ccL4 [F22B2]
|
|
25-301BK
|
Honda
|
2001-2002
|
Accord Value Package
|
2.3L/2254ccL4 [F23A5]
|
|
25-300BK
|
Honda
|
1992-1995
|
Civic CX
|
1.5L/1493ccL4 [D15B8]
|
|
25-301BK
|
Honda
|
1996-2000
|
Civic CX
|
1.6L/1590ccL4 [D16Y7]
|
|
25-300BK
|
Honda
|
1993-1995
|
Civic del Sol S
|
1.5L/1493ccL4 [D15B7]
|
|
25-301BK
|
Honda
|
1996-1997
|
Civic del Sol S
|
1.6L/1590ccL4 [D16Y7]
|
|
25-300BK
|
Honda
|
1993-1995
|
Civic del Sol Si
|
1.6L/1590ccL4 [D16Z6]
|
|
25-304BK
|
Honda
|
1996-1997
|
Civic del Sol Si
|
1.6L/1590ccL4 [D16Y8]
|
|
25-300BK
|
Honda
|
1994-1995
|
Civic del Sol VTEC
|
1.6L/1590ccL4 [B16A3]
|
|
25-300BK
|
Honda
|
1996-1997
|
Civic del Sol VTEC
|
1.6L/1590ccL4 [B16A2]
|
|
25-300BK
|
Honda
|
1992-1995
|
Civic DX
|
1.5L/1493ccL4 [D15B7]
|
|
25-301BK
|
Honda
|
1996-2000
|
Civic DX
|
1.6L/1590ccL4 [D16Y7]
|
|
25-303BK
|
Honda
|
1990-1991
|
Civic EX
|
1.6L/1590ccL4 [D16A6]
|
|
25-300BK
|
Honda
|
1992-1995
|
Civic EX
|
1.6L/1590ccL4 [D16Z6]
|
|
25-304BK
|
Honda
|
1996-2000
|
Civic EX
|
1.6L/1590ccL4 [D16Y8]
|
|
25-301BK
|
Honda
|
1996-2000
|
Civic HX
|
1.6L/1590ccL4 [D16Y5]
|
|
25-300BK
|
Honda
|
1992-1995
|
Civic LX
|
1.5L/1493ccL4 [D15B7]
|
|
25-301BK
|
Honda
|
1996-2000
|
Civic LX
|
1.6L/1590ccL4 [D16Y7]
|
|
25-303BK
|
Honda
|
1988-1991
|
Civic RT 4WD
|
1.6L/1590ccL4 [D16A6]
|
|
25-303BK
|
Honda
|
1989-1991
|
Civic Si
|
1.6L/1590ccL4 [D16A6]
|
|
25-300BK
|
Honda
|
1992-1995
|
Civic Si
|
1.6L/1590ccL4 [D16Z6]
|
|
25-300BK
|
Honda
|
1999-2000
|
Civic Si
|
1.6L/1595ccL4 [B16A2]
|
|
25-301BK
|
Honda
|
1999
|
Civic Value Package
|
1.6L/1590ccL4 [D16Y7]
|
|
25-300BK
|
Honda
|
1992-1995
|
Civic VX
|
1.5L/1493ccL4 [D15Z1]
|
|
25-304BK
|
Honda
|
1998
|
CR-V EX
|
2.0L/1972ccL4 [B20B4]
|
|
25-301BK
|
Honda
|
1999-2000
|
CR-V EX
|
2.0L/1972ccL4 [B20Z2]
|
|
25-304BK
|
Honda
|
1997-1998
|
CR-V LX
|
2.0L/1972ccL4 [B20B4]
|
|
25-301BK
|
Honda
|
1999-2000
|
CR-V LX
|
2.0L/1972ccL4 [B20Z2]
|
|
25-301BK
|
Honda
|
2000
|
CR-V SE
|
2.0L/1972ccL4 [B20Z2]
|
|
25-303BK
|
Honda
|
1988-1989
|
CRX HF
|
1.5L/1493ccL4
|
|
25-303BK
|
Honda
|
1990-1991
|
CRX HF
|
1.5L/1493ccL4 [D15B6]
|
|
25-303BK
|
Honda
|
1988-1991
|
CRX Si
|
1.6L/1590ccL4 [D16A6]
|
|
25-303BK
|
Honda
|
2000-2002
|
Insight
|
1.0L/995cc (61ci) L3 ELEC/GAS [ECA1]
|
|
25-303BK
|
Honda
|
1997-2001
|
Prelude
|
2.2L/2156ccL4 [H22A4]
|
Must use AEM Fuel Rail
|
25-300BK
|
Honda
|
1988-1991
|
Prelude 2.0 Si
|
2.0L/1958ccL4 [B20A5]
|
|
25-300BK
|
Honda
|
1988-1989
|
Prelude 2.0 Si 4WS
|
2.0L/1958ccL4 [B20A5]
|
|
25-300BK
|
Honda
|
1992-1996
|
Prelude S
|
2.2L/2156ccL4 [F22A1]
|
Must use AEM Fuel Rail
|
25-303BK
|
Honda
|
1995
|
Prelude SE
|
2.3L/2259ccL4 [H23A1]
|
Must use AEM Fuel Rail
|
25-300BK
|
Honda
|
1990
|
Prelude Si
|
2.1L/2056ccL4 [B21A1]
|
|
25-300BK
|
Honda
|
1991
|
Prelude Si
|
2.1L/2056ccL4 [B21A1]
|
|
25-303BK
|
Honda
|
1992-1996
|
Prelude Si
|
2.3L/2259ccL4 [H23A1]
|
Must use AEM Fuel Rail
|
25-300BK
|
Honda
|
1990
|
Prelude Si 4WS
|
2.1L/2056ccL4 [B21A1]
|
|
25-300BK
|
Honda
|
1991
|
Prelude Si 4WS
|
2.1L/2056ccL4 [B21A1]
|
|
25-303BK
|
Honda
|
1992
|
Prelude Si 4WS
|
2.3L/2259ccL4 [H23A1]
|
Must use AEM Fuel Rail
|
25-303BK
|
Honda
|
1993
|
Prelude Si 4WS
|
2.3L/2259ccL4
|
Must use AEM Fuel Rail
|
25-300BK
|
Honda
|
1990
|
Prelude Si ALB
|
2.1L/2056ccL4 [B21A1]
|
|
25-300BK
|
Honda
|
1991
|
Prelude Si ALB
|
2.1L/2056ccL4 [B21A1]
|
|
25-303BK
|
Honda
|
1997-2001
|
Prelude Type SH
|
2.2L/2156ccL4 [H22A4]
|
Must use AEM Fuel Rail
|
25-303BK
|
Honda
|
1993-1996
|
Prelude VTEC
|
2.2L/2156ccL4 [H22A1]
|
Must use AEM Fuel Rail
|
25-301BK
|
Honda
|
2000-2003
|
S2000
|
2.0L/1997ccL4 [F20C1]
|
|
25-301BK
|
Honda
|
2004-2005
|
S2000
|
2.2L/2157ccL4 [F22C1]
|
|
