AEM Air Inlet Temperature Sensor

  • Sale
  • $50.70
  • Regular price $53.52
Shipping calculated at checkout.


AEM Air Inlet Temperature Sensors

You can't be to careful when selecting sensory input for the modern EFI system.  AEM offers a variety of high quality, high accuracy sensors designed to give you reliable, consistent data to your ECM and gauge systems.

Please read the descriptions before ordering, and call if you have questions on your specific application.

Air Inlet Temperature Sensor

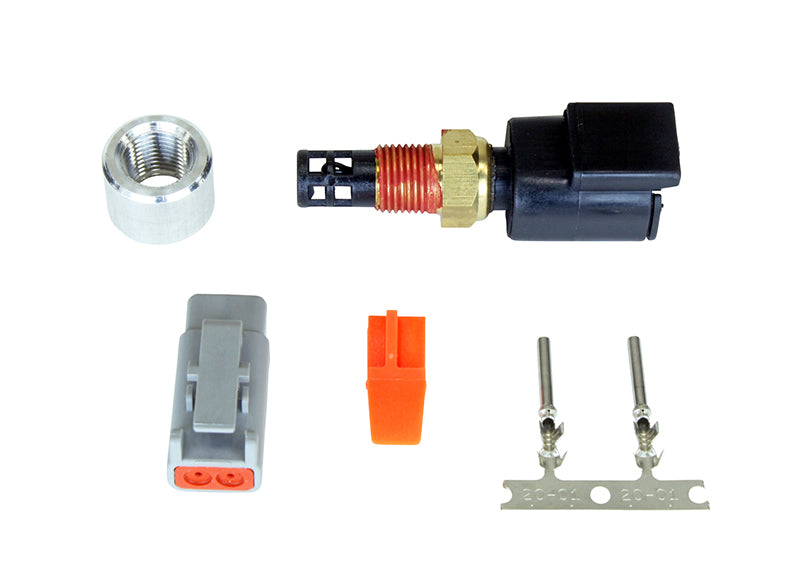

30-2014 - Air Temp Sensor Kit

  • Accuracy: < 1.5°C / 2.7°F
  • Operating Temp: -20C to 150C / -4F to 302F
  • Resistive Range (Ω): See Instructions
  • Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
  • Sensor Body Material: Brass
  • Thread: 1/8" NPT
  • Hex Size: 1/2"
  • Installation Torque: 13.5Nm / 10 ft-lbs
  • Weight: 10g
  • Electrical Termination: Weatherproof High Performance DTM-Style connector. Includes Mating Connector, Pins & Wire Seals
  • Includes: Air Temp Sensor High Performance DTM-Style, 1/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals



30-2010 - Air Temp Sensor Kit

  • Accuracy: < 1.5°C / 2.7°F
  • Operating Temp: -40C to 135C / -40F to 275F
  • Resistive Range (Ω): See Table
  • Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
  • Sensor Body Material: Brass
  • Thread: 3/8" NPT
  • Hex Size: 3/4"
  • Installation Torque: 20Nm / 15 ft-lbs
  • Weight: 33.3g
  • Electrical Termination: Weatherproof connector. Includes Mating Connector, Pins & Wire Seals
  • Includes: Air Temp Sensor, 3/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
