AEM Classic Digital Boost Display Gauges
PN: 30-4406 (-30 to 35psi)
PN: 30-4408 (-30 to 50psi)
displays boost pressure and outputs to data loggers

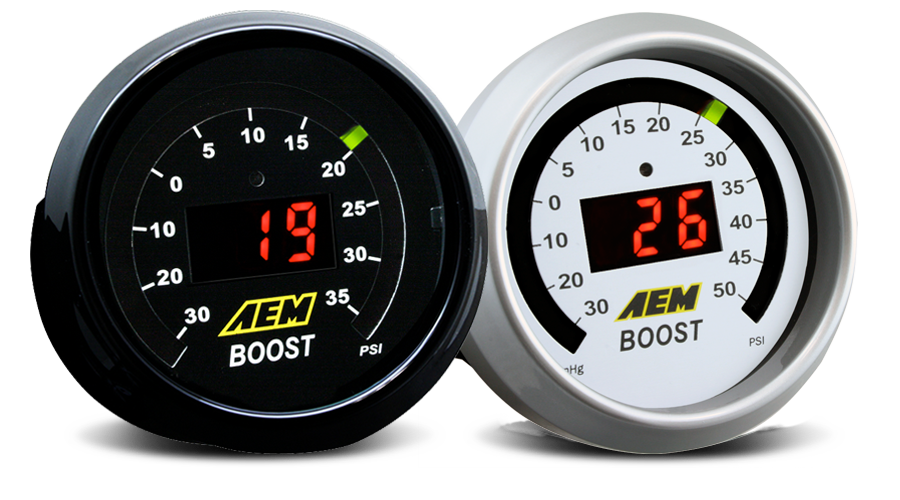

AEM's Digital Boost Display Gauges combine unsurpassed accuracy, speed and control with an easy-to-read digital LED interface that displays boost in 1 PSI increments, and a sweeping LED "needle" that lines the edge and moves as boost from 0 to up to 50 PSI. The boost gauge's digital readout will automatically increase and decrease in intensity due to the built in ambient light sensing photocell.
AEM's digital boost gauges include a 0-5v analog output for use with data loggers and virtually any engine management system, such as the Infinity ECU, Series 2 EMS or AQ-1 Data Logger, making it the perfect solution for users who need to monitor and data log boost at high RPM on tuned engines. Each gauge includes interchangeable silver and black bezels and black and white faceplates to personalize the look of your gauge.
NOTE: For boost control solutions please see our TRU-BoostX Controller Gauge PN: 30-0352.
- Ideal for carbureted or EFI vehicles
- Easy-to-install Plug & Play harness and sensor included
- 24 green LED display lights provide immediate reference to monitored engine function
- Three digit readout in center
- Each gauge comes with interchangeable black/silver bezels and black/white faceplates
- 0-5V analog output included for use with data loggers and virtually any engine management system
- Auto-dimming gauge face and read out lighting
- Brass sensor included
- Standard 52mm (2-1/16”) gauge housing
- 30-4406 displays boost from -30 - 35 PSI
- 30-4408 displays boost from -30 - 50 PSI
