AEM Infinity Series 3 - 358 Stand-Alone Programmable ECM

Instructions

INFINITY SERIES 3 PROGRAMMABLE EFI OVERVIEW
AEM's Infinity Series 3 Programmable ECU platform is designed for popular early- and late-model throttle body and port injected Ford, GM and Mopar V8s. The Series 3 ECUs are simplified engine controllers designed to run a basic race, marine or crate engine without the need for, or cost of, additional features like variable cam control, Drive-by-Wire throttle control or internal wideband air/fuel sensor controllers.



INFINITY 358 PROGRAMMABLE EFI
The Infinity 358 (PN 30-7114) is designed to control 2V and 4V Ford Modular engines, late-model Dodge Hemi engines, and other late-model, individual direct-drive “dumb” coil V8 engines with port injection using 8 high impedance injectors.

200MHz Processor and Real-Time Operating System
Late model vehicle ECU’s all run on faster processors. The Infinity ECU is built around a latest-generation 32-bit floating point 200MHz automotive processor and Real-Time Operating System (RTOS), which is capable of processing 400 MIPS (millions of instructions per second). By comparison, common competitive systems typically use 20MHz to 50MHz processors. To our knowledge, the Infinity ECU currently has the fastest processing speed of any aftermarket Motorsports ECU available. This allows the Infinity to do more, faster, in a more stable programming environment.

  • The Infinity’s 200MHz processor and RTOS makes the Infinity more responsive, for a better driving experience
  • The Infinity’s 200MHz processor and RTOS allows for more accurate ignition timing, which enables an engine to create more power
  • The Infinity’s faster processor allows it to perform more computational features with no sacrifice in processing performance
  • The Infinity’s RTOS ensures strategic processing with optimized load balancing. This means that tuning one feature will not affect the performance of another feature

SUPPORTED vs. PLUG & PLAY APPLICATIONS
The Infinity ECU delivers comparable tuning functionality regardless of application type. It is available for a wide variety of applications in two distinct forms:

Supported Applications

  • Infinity Supported applications refer to an engine family or cam/crank pattern for which the Infinity ECU has been tested and validated to run. However, certain ancillary vehicle systems (such as factory instrument clusters, automatic transmissions, and certain drive by wire throttles), may not be supported
  • The setup Wizard included with the InfinityTuner user interface software dramatically simplifies initial tuning configuration to help ensure successful initial startup for Supported applications
  • Wiring is required for Supported applications. AEM offers Universal wiring harnesses in several iterations and detailed application-specific wiring instructions/schematics (please visit the Buy/Instructions Tab or Infinity Wiring Harnesses Page for more information)

Plug & Play Applications
Infinity Plug & Play applications are available for select vehicles. Plug & Play applications support a vehicle’s engine and most other ancillary vehicle systems and include application-specific startup calibrations. The Infinity Plug & Play harness (sold separately) connects directly into the vehicle’s factory ECU harness and requires no additional wiring.

Features

Designed for the price conscious racer, the Infinity Series 3 incorporates all of the features necessary to run a high-performance engine including airflow-based VE tuning for fuel injection control, ignition control, Flex Fuel, knock control, boost control, nitrous control, launch control, wheel speed-based traction control and engine protection. The Series 3 is able to communicate with 3rd party dashes and loggers and is AEMnet CANbus enabled to easily communicate with other AEMnet equipped devices. All maps can be password protected. Its latest generation 200MHz processor can process 400 MIPS (Millions of Instructions Per Second).

Air/Fuel Ratio (AFR) feedback is supported by adding external wideband controllers through 0-5V analog inputs or via AEMnet CANbus using AEM’s X-Series Wideband UEGO AFR controllers. An Engine History feature is included that records basic engine operating conditions including Run Time, Peak RPM (overrev), Oil Pressure/Temp Overheat (requires sensors, sold separately) and Lean Condition (Boost/Vacuum vs AFR). All of the parameters of the Engine History feature are user programmable.

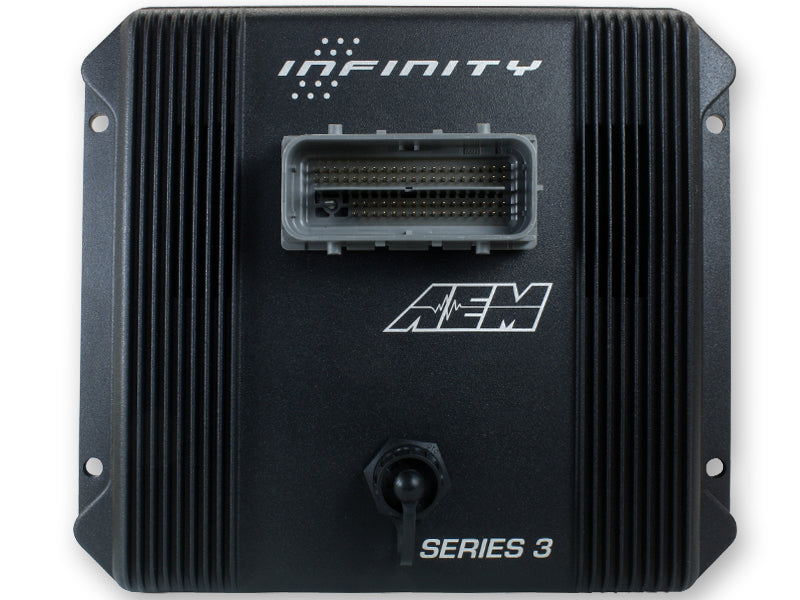

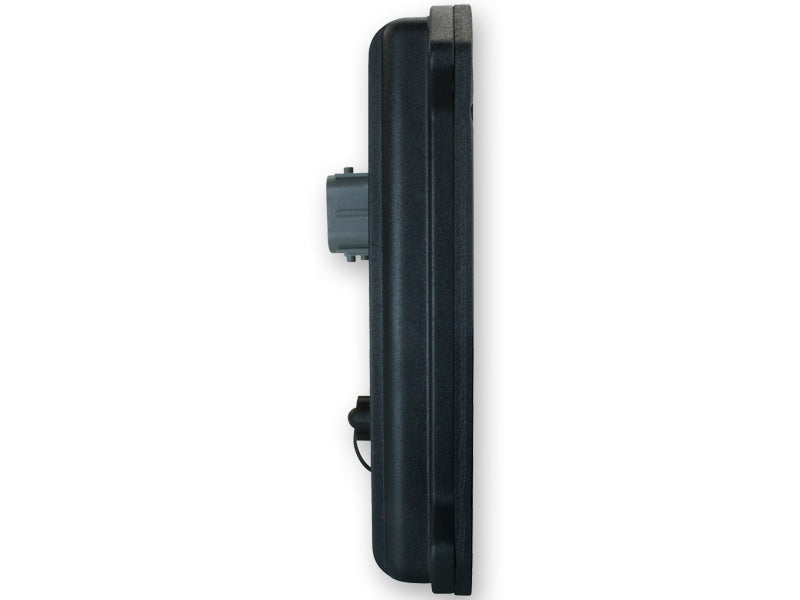

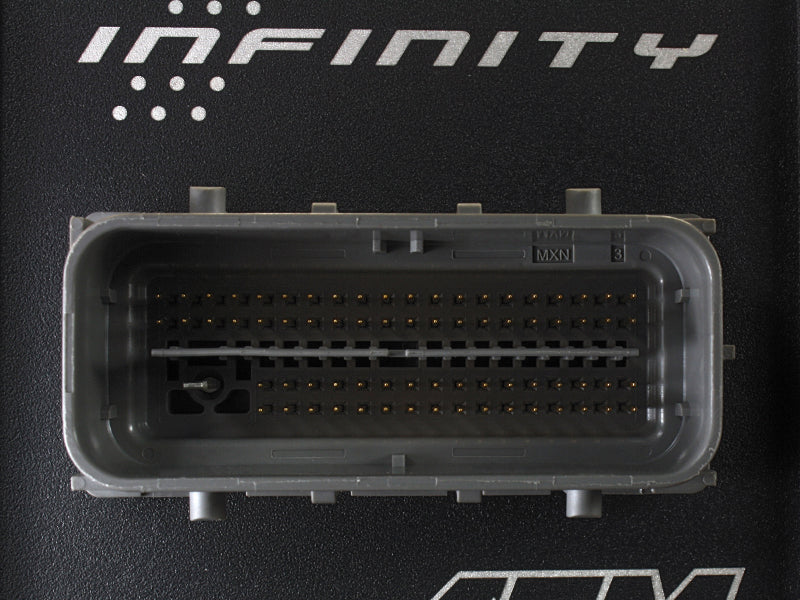

Both systems feature a small, thin footprint (7.35” x 6.55” x 1.8”), lightweight (29.9oz/848g) and 73-pin connectors. The Infinity Series 3 enclosure is fully sealed and the connectors are IP67 rated (dustproof, waterproof to 1 meter) making the Infinity suitable for engine bay mounting.

WIRING HARNESSES

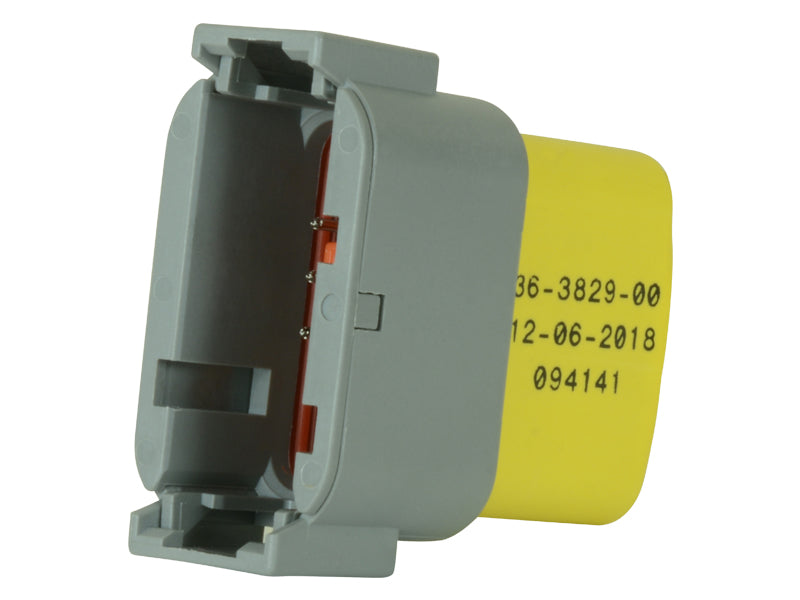

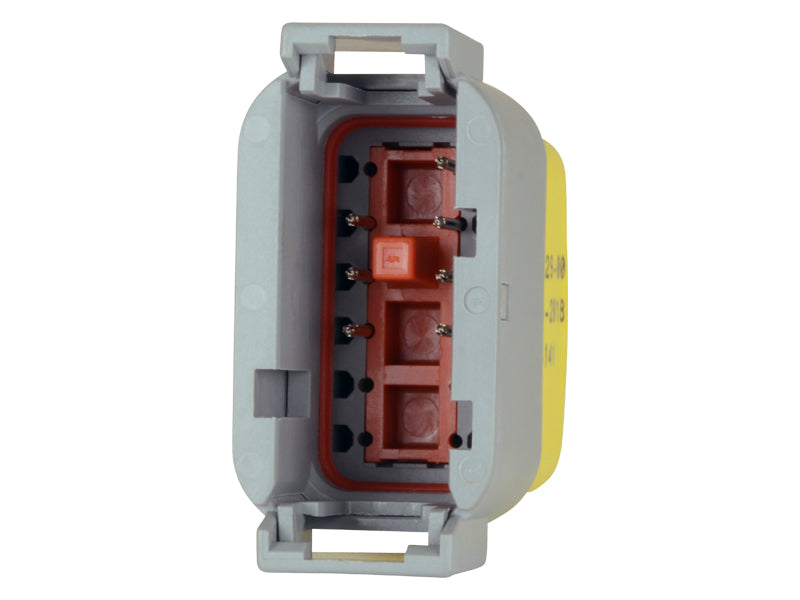

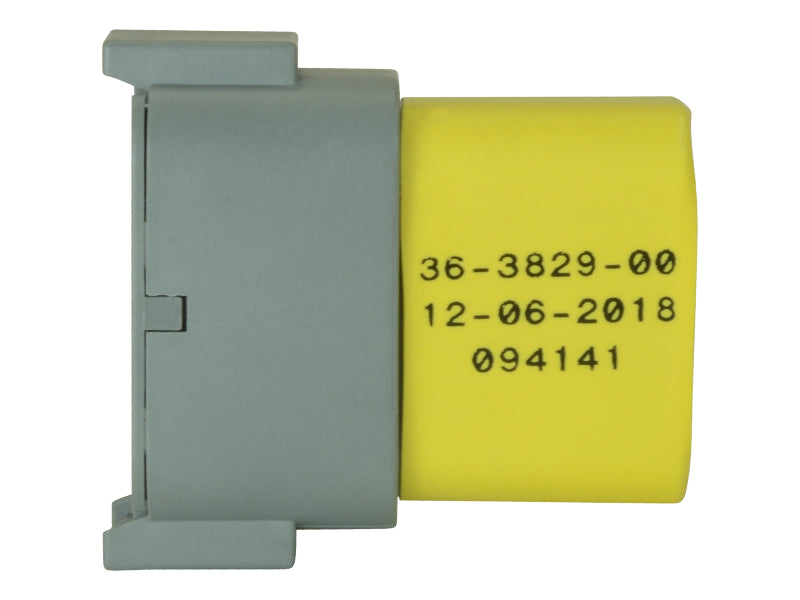

AEM offers a flying lead wiring harness for the Infinity Series 3 platform that is 96” in length and pre wired with power, grounds, a power relay, fuse block and AEMnet (PN 30-3707). A Plug & Pin kit (PN 30-3708) is also available for the Series 3 that includes a 73-pin connector with cover, 73 small pins, 1 micro relay with pins and 30 sealing plugs. Plug & Play adapter harnesses willbe available in the near future for seamless conversions on engines using MEFI controllers.

  • Fuel Injection control via airflow model-based (VE) tuning
  • Full ignition control
  • Closed loop AFR feedback
  • ECU Set Up Wizard simplifies start up
  • Flex fuel compatible
  • Multiple boost control strategies
  • Nitrous control
  • Map switching
  • Dual knock sensing circuits
  • Engine history
  • Outputs to 3rd party dashes and data loggers
  • Integrated engine protection strategies
  • Sealed enclosure and IP67 rated comms ports

Capability

AIRFLOW MODEL BASED CALCULATIONS
Infinity’s airflow model based systems greatly reduce the amount of time it takes to set up and tune an engine by eliminating many of the lookup and trim tables (correction tables) necessary in previous generation ECUs. The Infinity’s airflow based, or volumetric efficiency (VE) based models calculate an engine’s requirements in real time based on an advanced algorithm that has various modes for calculating air flow. Once the user inputs an engine’s basic parameters (displacement, cylinders, ignition type, and firing order) and methods of calculation for airflow and ignition they can begin setting the engine’s VE table in the software.

InfinityTuner USER INTERFACE SOFTWARE
InfinityTuner is optimized for speed and performance. The software has the power to control a multitude of features found in today’s modern racecars, and features an advanced tuning Wizard to reduce set up time. An ECU Setup Wizard takes complex calibration setup work and simplifies it through a smart interface that features tabs for quick set up of vital engine functions. Each tab includes a description of the function.

InfinityTuner software is highly flexible. It allows you to choose from multiple strategies for boost control, idle control, wheel speed-based traction control, charge air temp blend, launch control and more.

All controls in the Infinity ECU are synched to logged data which allows users to edit calibration data during log playback to minimize tuning time. AEMdata, AEM’s advanced data logging analysis software is also included for reviewing data logs.

ULTRA-HIGH RESOLUTION FUEL CONTROL
The Infinity ECU calculates injector pulsewidth in units of 1/10th of a microsecond (0.0000001 second). Individual cylinder fuel trim is included and user adjustable.

ACCURATE IGNITION TIMING UNDER ANY CONDITION
InfinityTuner software features a 3D ignition trim map (coolant and air temp based), and its back-end timing code is tested to 100,000 RPM. Individual cylinder ignition trim is included.

FLEX FUEL COMPENSATION
Flex fuel compatibility is included, and the Infinity is able to make automatic adjustments for ethanol content in the fuel with the addition of an ethanol content sensor (sold separately).

MULTI-FUEL CAPABLE
The Infinity has the ability to run two separate fuel types simultaneously through staged fuel injection

IDLE CONTROL
The Infinity ECU uses a coolant temp based idle control model. It includes an RPM vs. Engine Speed Rate idle decel feature that provides accurate control of the IAC and allows for adjustment of engine braking. The Infinity’s idle TPS offset provides smoother low idle operation when necessary, like driving in the pits or return lane following a pass.

MULTIPLE BOOST CONTROL STRATEGIES
Choose from time, gear, vehicle speed, switch based or other boost control strategies. The Infinity’s boost control includes two 2D base duty tables and two 2D boost target tables. The second tables can be used as a trim, and users can choose from multiple strategies including IAT, MAP, Baro (kpa), throttle %, flex fuel content, boost target and more. Please visit our Forumfor an in depth review of the Infinity’s boost control capabilities.

NITROUS CONTROL
The Infinity’s software allows you to run a single-stage wet or dry nitrous set up (four-stage available soon). This feature includes nitrous timing delay to account for nitrous bleed out, and can be set up for water/methanol injection tuning.

MAP SWITCHING
The Infinity includes up to four separate ignition maps, four separate Lambda maps and two separate VE maps with independent values. Using AEM’s 12 Position Trim Pot, this powerful feature delivers many valuable tuning options including:

  • Multiple maps for multiple track conditions (practice map, rain map, qualifying map, FTW map)
  • Change boost target
  • Change Lambda target
  • Change ignition target
  • Tie boost, Lambda and ignition targets together and change them all
  • Ideal for test mapping during tuning
  • Change boost base duty
  • Control PWM switches (like water/methanol injection)
  • Choose between 2 VE tables for VVC or when restrictors are in place
  • Blend between flex fuel ignition maps
  • Blend by cam position and gear

ENGINE PROTECTION
Multiple engine protection strategies are incorporated into the Infinity ECU. Available strategies include:

  • MAP (create limp mode using Assumed Pressure Ratio table to compensate for pressure if sensor fails)
  • Overboost (boost fuel cut until boost/throttle decreases)
  • Fuel pressure (injector flow compensated for variations in pressure, sensor required)
  • Oil pressure (trigger light or limit RPM if pressure drops below set value, sensor required)
  • RPM (rev limiter)
  • Coolant temperature, Temp vs. RPM (fuel and ignition cut, sensor required)
  • Knock control with feedback
  • Lean protection (fuel and ignition cut)

REAL-TIME ADVANCED DIAGNOSTICS
The Infinity’s diagnostics software can be configured to constantly monitor signal and current quality to alert the user of a potential issue before it creates the potential for engine damage.

CLOSED LOOP AFR FEEDBACK CONTROL
Infinity Series 3 users have the ability to add up to two external wideband air/fuel ratio (AFR) sensor controllers via analog inputs or through AEMnet CANbus using AEM's X-Series Wideband AFR Controllers for closed-loop wideband AFR feedback control.

DUAL KNOCK SENSING
Dual knock signal conditioning circuits allow for precise measurements of knock levels. The Infinity can utilize both Piezoelectric and Flat Response type knock sensors.

RELIABILITY
The Infinity ECU is constructed using automotive-rated components designed to withstand the harshest racing environments. Its enclosure and connectors are sealed to make it suitable for engine bay mounting. An advanced wear-leveling strategy for flash memory ensures a lifetime of reliable performance.

COMMUNICATIONS
The Infinity ECU is able to transfer data via USB at up to 480 Mb/second. It features a fully-sealed IP67 communications connection system.

NETWORK INTERFACES
Infinity is AEMnet enabled and will communicate with another AEMnet-equipped device. It is able to output to 3rd party dash/logger devices (not all 3rd party dash/logger devices may be supported). Call AEM technical support at (310) 484-2322 for more information.

INFINITY SERIES 3 EMS CAPABILITIES:

  • Airflow model based calculations
  • VE-based engine startup
  • Multi-fuel capable
  • Flex fuel compensated – fuel, ignition and boost with blend
  • Multiple boost control strategies (time, gear, vehicle speed, switch and more)
  • 2-step programmable launch control (3-step with Advanced Tuning Package)
  • Programmable traction control, 2-wheel speed
  • No-lift shift
  • User configurable soft-cut rev limiters
  • User configurable anti-lag
  • Map switching (4 Separate ignition maps, 4 separate Lambda target maps, 2 separate VE tables)
  • Single stage wet or dry nitrous control
  • Integrated engine protection strategies
  • Target Lambda table, 10x10
  • Open-loop fuel pressure compensation
  • O2 lean-out protection
  • 2-channel adaptive knock control
  • Configurable coil dwell (RPM, voltage and load based)
  • Individual cylinder ignition trim (RPM based)
  • Individual cylinder fuel trim (RPM based)
  • 3D ignition trim maps (coolant and air temp)
  • Real-time sensor diagnostics
  • Ignition table, 20x20
  • VE airflow table, map vs. engine speed, 20x20
  • User adjustable charge temperature blend (CLT/AIT, engine speed dependent)
  • Idle control (stepper and pulsewidth)

WARNING!

THIS IS A RACE ONLY PRODUCT MANUFACTURED AND SOLD FOR INSTALLATION ON VEHICLES DESIGNED TO BE USED SOLELY FOR COMPETITION PURPOSES. ONCE THIS PART IS INSTALLED, THE VEHICLE MAY NEVER BE USED, OR REGISTERED OR LICENSED FOR USE, ON A PUBLIC ROAD OR HIGHWAY.

IT IS THE RESPONSIBILITY OF THE INSTALLER AND/OR USER OF THIS PRODUCT TO ENSURE THAT IT IS USED IN COMPLIANCE WITH ALL APPLICABLE LAWS AND REGULATIONS. IF THIS PRODUCT WAS PURCHASED IN ERROR, DO NOT INSTALL AND/OR USE IT. THE PURCHASER MUST ARRANGE TO RETURN THE PRODUCT FOR A FULL REFUND.

WARNING:
This installation is not for the tuning novice! Use this system with EXTREME caution! The AEM Infinity Programmable EMS allows for total flexibility in engine tuning. Misuse or improper tuning of this product can destroy your engine! If you are not well versed in engine dynamics and the tuning of engine management systems DO NOT attempt the installation. Refer the installation to an AEM-trained tuning shop.

NOTE: All supplied AEM calibrations, Wizards and other tuning information are offered as potential starting points only. IT IS THE RESPONSIBILITY OF THE ENGINE TUNER TO ULTIMATELY CONFIRM IF THE CALIBRATION IS SAFE FOR ITS INTENDED USE. AEM holds no responsibility for any engine damage that results from the misuse or mistuning of this product!
