Plug & Play
The operation is simple and charging will commence upon connection. With no need to disconnect the battery from the vehicle, at charge start the LITHIUM US will automatically reset any low voltage protection electronics (Battery Management System) fitted. Charging can be restarted manually at any time using the ‘Reset’ button.

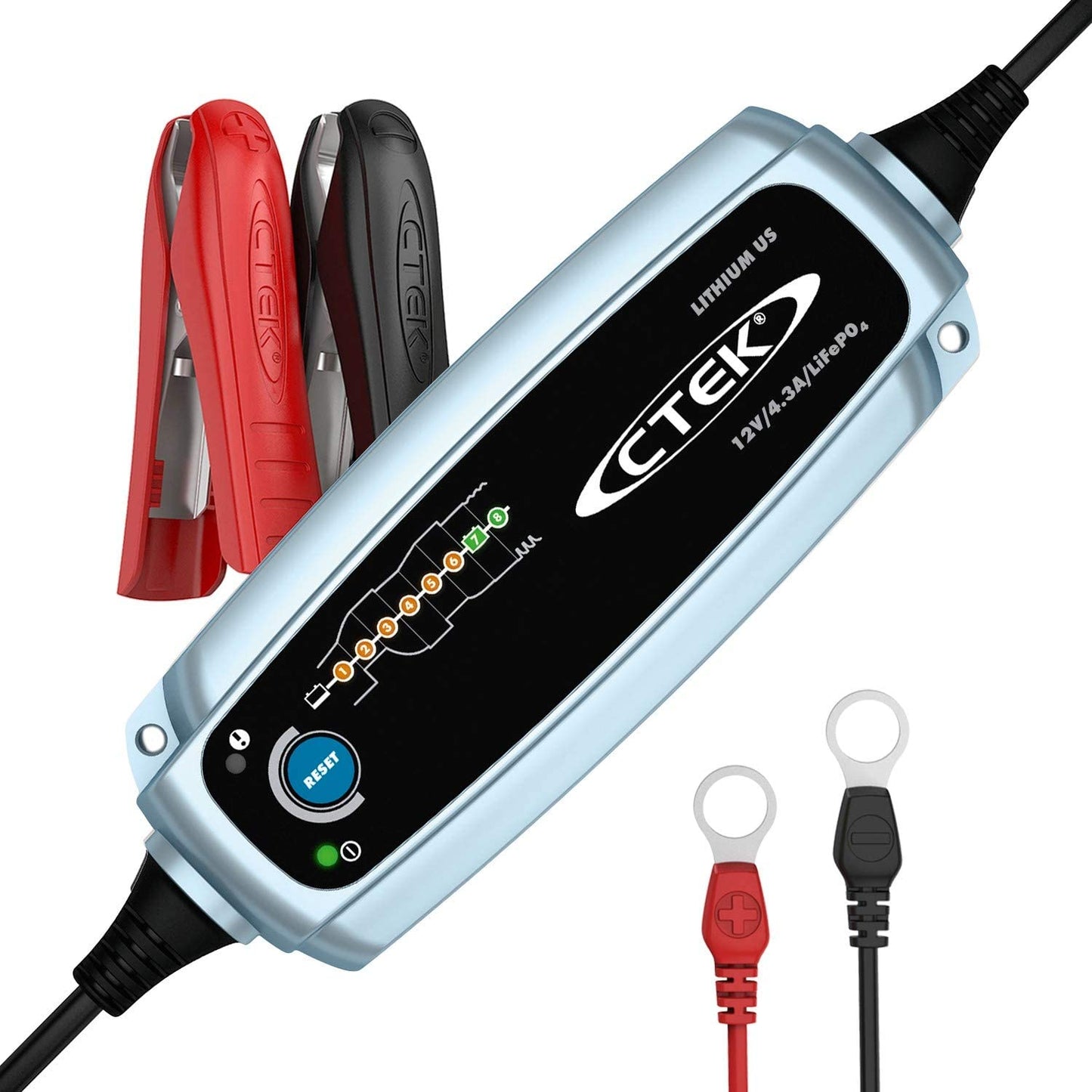

The CTEK LITHIUM US is a fully automatic ‘connect and forget’ charger with 8 charging steps including a testing sequence to show if the LiFePO4 battery can take and retain the charge, a unique maximization step to restore full capacity, and patented maintenance charging to ensure maximum performance even after months of inactivity. Splash-proof and dust-proof (IP65) the LITHIUM US is easy and safe to use, protects vehicle electronics, is spark-free, is reverse polarity protected and short circuit proof. The LITHIUM US features a 5-year warranty.
- Accept: Tests if the battery can accept charge. This step prevents that charging proceeds with a defect battery.
- Bulk: Charging with maximum current until approximately 90% battery capacity.
- Absorption: Charging with declining current to maximize up to 95% battery capacity.
- Analyze: Tests if the battery can hold charge. Batteries that can not hold charge may need to be replaced.
- Completion: Final charge with reduced current.
- Maximization: Final charge with maximum voltage up to 100% battery capacity.
- Float: Maintaining the battery voltage at maximum level by providing a constant voltage charge.
- Pulse: Maintaining the battery at 95-100% capacity. The charger monitors the battery voltage and gives a pulse when necessary to keep the battery fully charged.
- COMPLETE LIFEPO4 BATTERY CARE: Unique and patented system to Recover, Charge, and Maintain LiFePO4 Batteries to maximize performance and extend life.
- SAFE TO USE: User Safety through spark-free operation and reverse polarity protection. Vehicle Electrical Safety through exceptionally clean voltage and current delivery with no surges or spikes. No need to disconnect the battery from the vehicle when charging.
- CONNECT AND FORGET: Simple plug and play operation. Manual reset available.
- UNIQUE 8-STEP CHARGING: The patented 8-step program tests battery condition and charges and maintains to ensure maximum LiFePO4 battery life and performance. Float/pulse maintenance ensures ideal battery care during periods of inactivity.
- EXTENDS BATTERY LIFE: The unique features of CTEK chargers combine to maximize performance and extend LiFePO4 battery life.
- CTEK PN: 56-926
- Input voltage AC: 100-120VAC, 50-60Hz
- Charge voltage: 13.8 / 14.4V
- Charge current: Max 4.3A
- Type of charger: 8-step, fully automatic charging cycle
- Type of battery: 12V Lithium-Ion Phosphate (LiFePO4)
- Battery Capacity: 5.0Ah – 60Ah, maintenance charging up to 120Ah
- Protection Rating: IP65 (splash and dust proof)
