Fortune Auto 510 Series Coilovers - Gen 8 - BMW

  • Sale
  • Regular price $2,449.00
Shipping calculated at checkout.


Fortune Auto 510 Series Coilovers - Gen 8 - BMW

Instructions

Note: 510 Series Coilovers are custom, hand-built to order. Consequently, most applications have a several week lead time. If you require Custom Spring rates, please contact us to adjust your order.  Standard springs will be used by default.

Fortune Auto engineers are consistently chasing improvement and the development of the Generation 8 - 510 series damper is no exception.

The 510 Series single adjustable coilover is a remarkably sophisticated damper system. Utilizing the highly advanced, Concave Flow Digressive Piston to provide an incredibly dynamic adjustment range along with the ability to upgrade and rebuild, you'll never have to buy coilovers again.

New With Gen 8

500 Series 4 gen 8sr

Laser Etchings

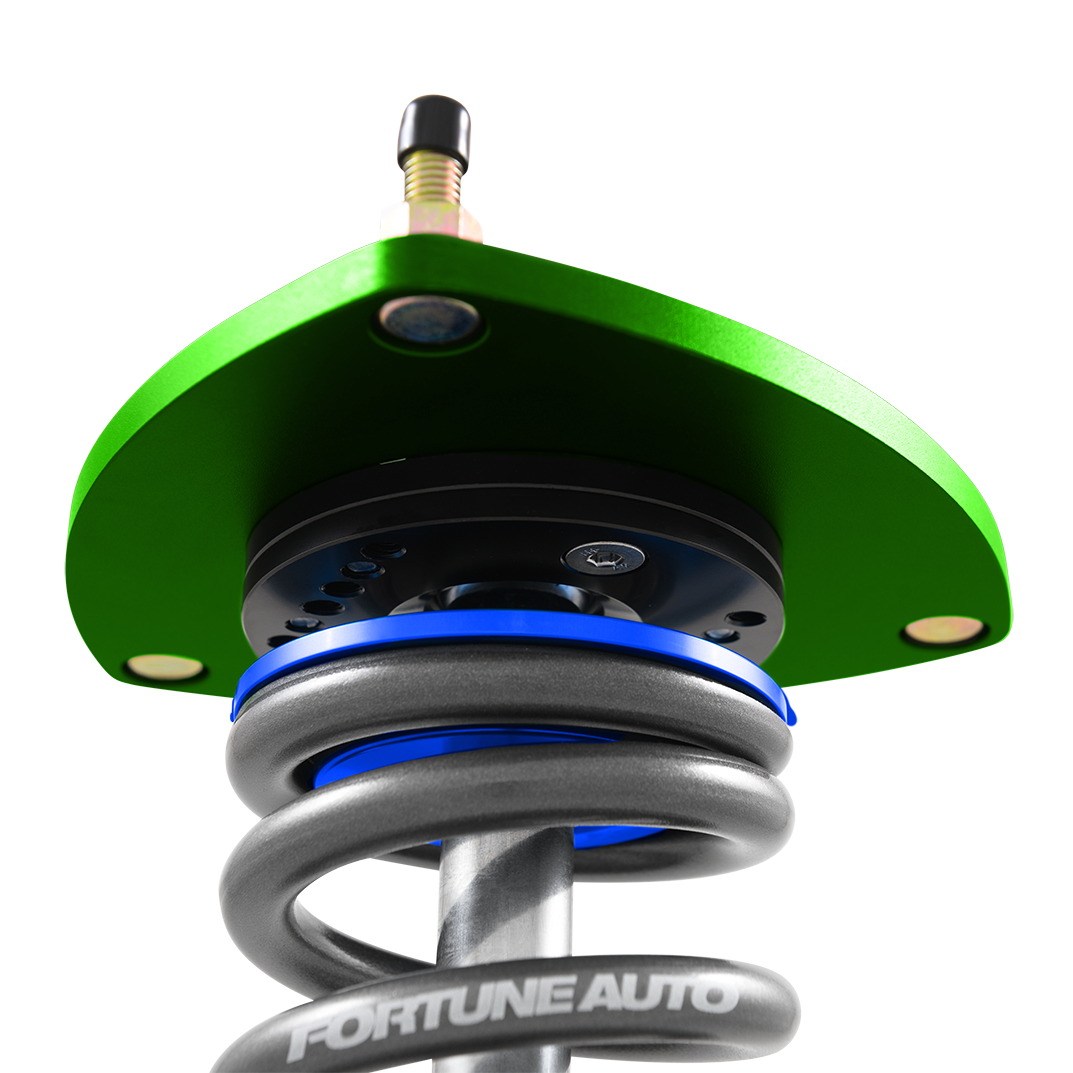

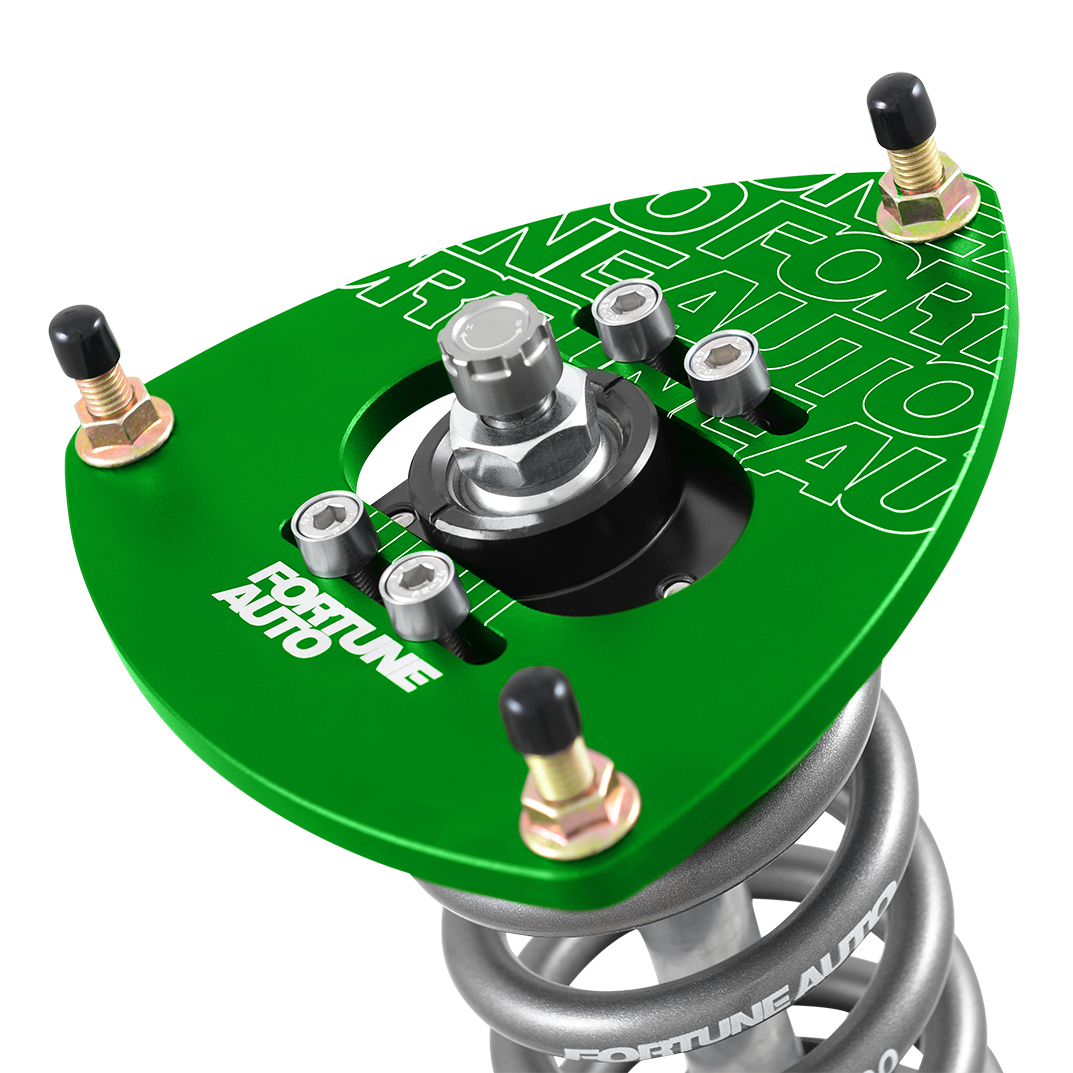

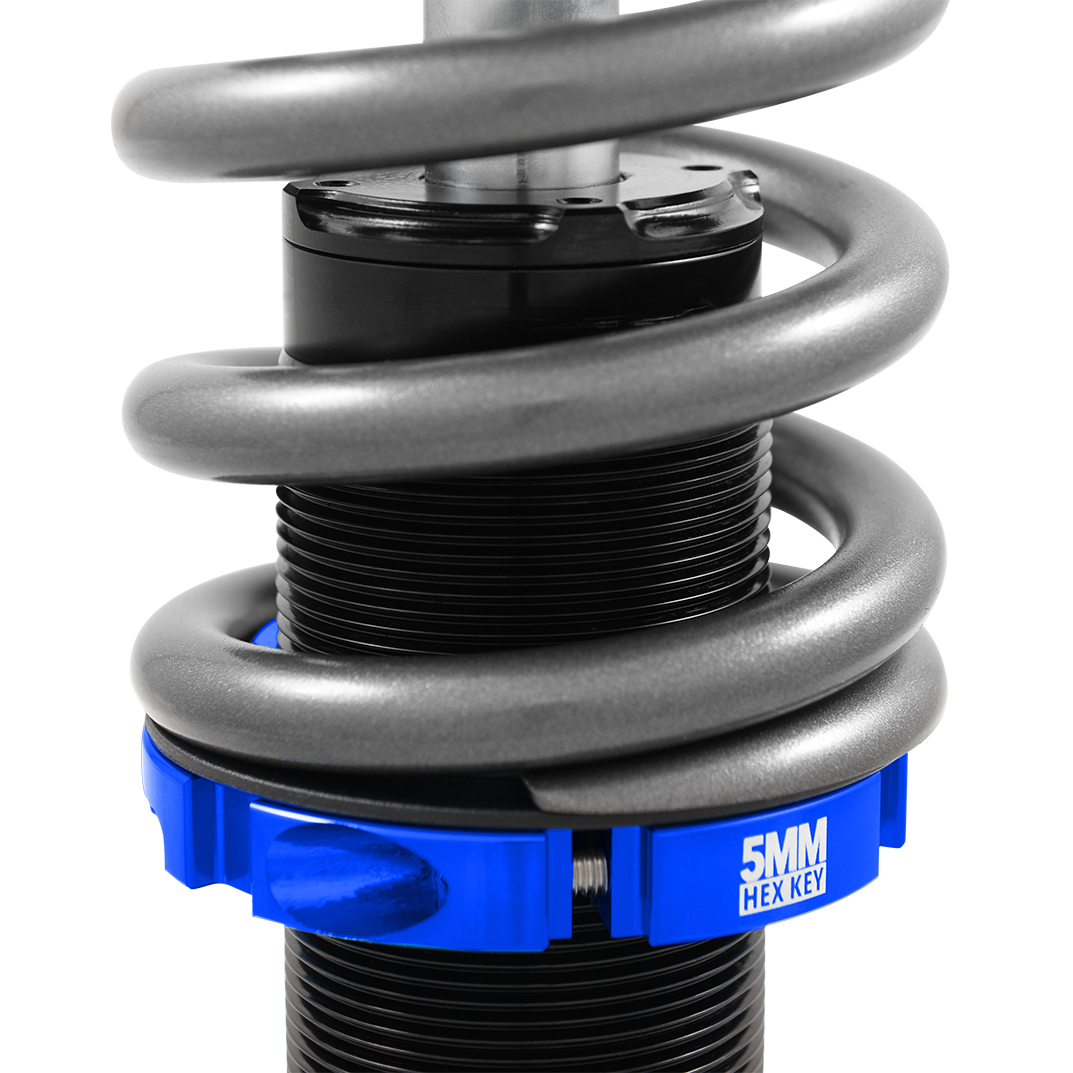

The most easily identifiable, external detail on the Generation 8 will be the new laser etched top plates, locking spring perches, and lower mount locking rings. Labeled with hex key sizes to make the process of setting up your coilovers even easier.

500 Series 10 1200 sq

Lower Mount Locking Ring Clamps

Lower mount locking ring clamps are now standard – easier to adjust and less prone to coming loose in high mechanical grip applications.

Flow Digressive Piston

High Flow Digressive™ Piston

The highly anticipated High Flow Digressive™ Pistons are now integrated in the 500 Series coilovers. Made of lightweight billet for maximum weight savings and higher damper sensitivity. The 500 Series is engineered to optimize the perfect balance between performance and comfort.

Concave Flow Digressive Piston

Revised Concave Flow Digressive™ Piston

Revised Concave Flow Digressive™ Pistons in 510 Series, Pro 2-Way, and Pro 3-Way applications. The renowned CFD Piston is now updated to the 6XXX Alloy Series. With optimized high flow valves, the efficiency and capability of the motorsports line of coilovers has never been better.

Features

FA Synthetic Shock Oil Amsoil Synthetic Shock Oil Modularity - Upgradeable to 2-Way Canister Modularity - Upgradeable to 2-Way Canister Aluminum T6 6061 Mounts and Camber Plates Aluminum T6 6061 Mounts and Camber Plates
High Flow Digressive Technology Concave Flow Digressive Piston Technology 24 Step Rebound Adjustable Dampers 24 Step Simultaneous Rebound and Compression Adjustable Dampers Rebuildable and Revalveable at our VA Facility Rebuildable and Revalveable at our VA Facility
Custom Built and Dyno Tested Custom Built - Assembly Certificate and Dyno Graph Supplied with all 4 Shocks Monotube Damper with High Pressure Nitrogen Monotube Damper with High Pressure Nitrogen 5 Year Limited Manufacturer's Warranty 5 Year Limited Manufacturer's Warranty

NO RE-VALVES NECESSARY

The ultra wide range of adjustment offered by the CFD pistonallows for the convenience of tuning your suspension without having to revalve your dampers. A conventional shock absorber can withstand a 2kg spring rate difference before requiring a revalve, whereas the Concave Flow Digressive Technology has a broad range of 8kg spring rates. This is invaluable for tuning your suspension quickly at the track on race day.

JEKYLL AND HYDE

The Concave Flow Digressive Pistonallows for a Jekyll and Hyde personality. Lower spring rates can be stiffened up by using the wide damping range as an artificial spring rate, while higher spring rates feel much smoother. The large adjustment range contributes to a comfortable ride on the street and unyielding performance on the track, all with the twist of a single adjustment knob.
fortune auto coilover standard features

BRIGHT DIP ANODIZED

Bright dip anodizing is a chemical polishing/anodizing process that is very effective in enhancing the integrity of the aluminum. Bright dipping creates a brilliant, shiny surface which protects our 6061 forged aluminum parts from corrosion and oxidation, ensuring that your parts look great for years to come.

RADIAL BEARING MOUNTS

The high-quality Koyo Japan radial bearing provides less bind for noise-free operation and smoother steering response.

BACK-MILLED ALUMINUM COMPONENTS

Aluminum components on the Generation 7 series coilovers are designed for optimal efficiency by maximizing weight savings without compromising integrity.
dyno tested coilovers with primum springs locking perches and flow digressive technology

DYNO-TUNED AND TESTED

EVERY Fortune Auto shock absorber is dyno-tested. Once your shock absorbers are built, they are tested and matched, because we refuse to treat our shocks with a “one size fits all” mentality.

PREMIUM CHROME SILICON SPRINGS

The Generation 7 line of suspension is equipped with a new standard spring. Made with a special premium alloy that offers superior performance, longevity, and ride quality.

CFD DIGRESSIVE PISTON™

Concave Flow Digressive piston technology™ allows for tremendous amounts of low speed force that translates driver inputs into razor sharp control. Furthermore, the force “blows off” to provide the driver with a supple compliant ride while maintaining superior mechanical grip over rough surfaces.

Applications

BMW Coilovers
Model Top Mount Custom Rates Available Year
3 Series (E36) P S Y 1992~1998
3 Series (E46) P S Y 1999~2006
3 Series RWD (E90/E91/E92) P N Y 2006~2012
3 Series RWD (F30/F31) P N Y 2013~2020
3 Series AWD (F30/F31) P N Y 2013~2020
M2 (F87) (Includes Front Endlinks) P N Y 2016~
M3 (E36) P S Y 1995~1999
M3 (E46) P S Y 2001~2006
M3 (E90/92/93) (Includes Front Endlinks) P N Y 2007~2013
M3/M4 (F80) (Includes Front Endlinks) P N Y 2015~
