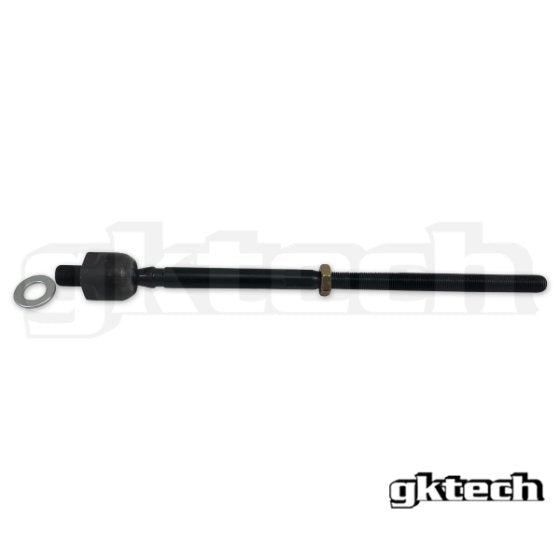

GKTech M14 Super Adjustable Inner Tie Rod
We have developed an OEM replacement inner tie rod with more adjustment than any other tie rod available. After setting up our own cars we quickly discovered that there are a heap of factors that determine the tie rod length required such as whether you are running rack spacers or not, the knuckles that you're running and then the length of your LCA. These variables create a near endless amount of variables that we narrowed down to up to a +2.75" (70mm) increase in length over a regular S14 tie rod and we also included adjustment for those needing to reduce the length of the tie rod.

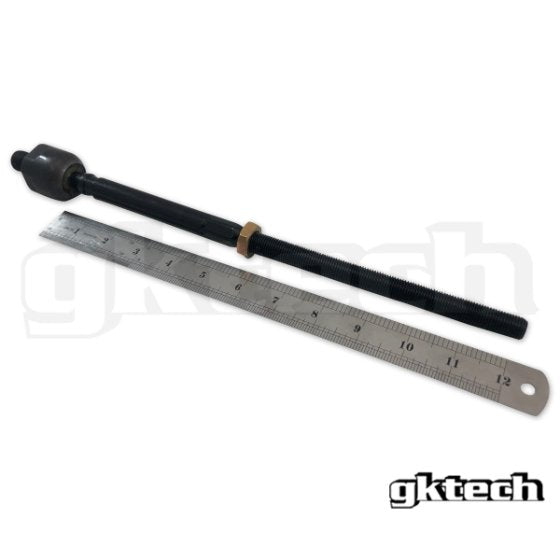

The final product as shown in the photos compared to some popular alternate tie rods shows just how much adjustment our tie rod has.

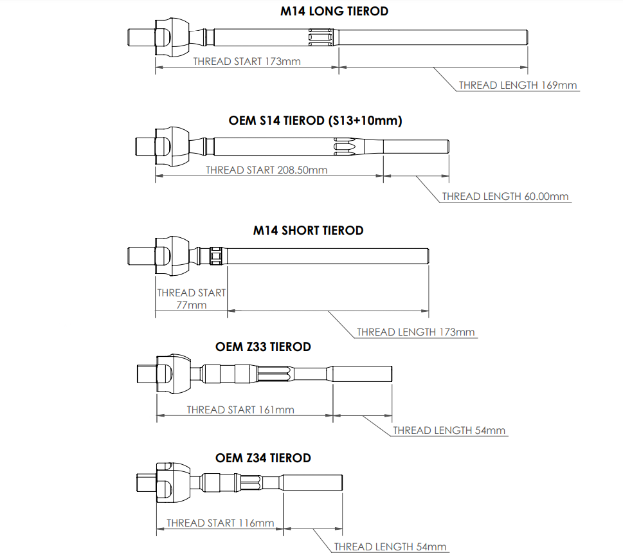

- Short tie rod adjustable from 2.6" (66mm) minimum length through to 9.84" (250mm) (7.2" (183mm) of adjustment)
- Long tie rod adjustable from 6.88" (175mm) minimum length through to 13.38" (340mm) (6.88" (175mm) of adjustment)
- M14 in size for increased strength over M12 setups
- Rod is manufactured from HRC 25-28 Steel with PTFE (Teflon) lined maintenance free bearing
- 50 degrees range of motion (25 degrees misalignment)
- Sold individually
Vehicle Compatibility
- Nissan S13 240sx
- Nissan S13 Silvia
- Nissan S14 240SX
- Nissan S15 Silvia
- Nissan Skyline R32 GTS-T
- Nissan Skyline R32 GTR
- Nissan Skyline R33 GTS-T
- Nissan Skyline R33 GTR
- Nissan Skyline R34 GT-T
- Nissan Skyline R34 GTR
- Nissan A31 Cefiro
- Nissan Z32 300ZX
- Nissan Z33 350z
- Infiniti G35
NOTE: In most cases this tie rod will need to be cut down. This is very easy to do and very much a DIY install.
NOTE#2: If you have an S13 240sx, S15 Silvia or R32 Skyline you will need to change the tie rod to an M14 version such as that used on the S14, R33 etc.
FAQ
HOW HARD ARE THESE TO INSTALL?
Remove your old tie rods, measure where these need to be cut in length and install them. It's a very self explanatory install and shouldn't take longer than 30 minutes.
WILL THIS FIT MY CAR?
If your car is listed above then the tie rods will fit however they may also fit other setups not listed but we can't be sure.
DO I NEED A WHEEL ALIGNMENT AFTER INSTALLING THESE?
Unless you get the length spot on perfect, you will need a wheel alignment after installation.
