GKTech S/R/Z32 Chassis Polyurethane Differential Bushings

The GKTECH Polyurethane differential bushings are a direct replacement of the standard items and ensure that movement of the diff is kept to a minimum within the subframe which is quite common under hard driving conditions.

  • Polyurethane 80sHA construction
  • Available to order as front, rear or front and rear kit

Front only:

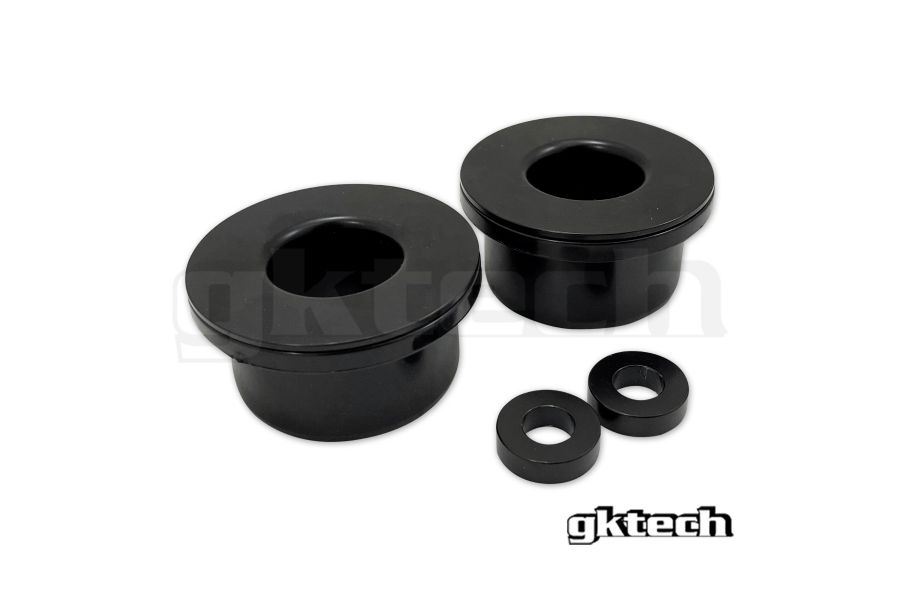

The front differential bushings are to be used when installing an S14/S15/R33/R34 differential in an S13/R32 subframe. The S14/S15/R33/R34 differentials have bushings on both the front and rear of the differential whereas the S13/R32 differentials do not. You use the original rear differential cover and then to get the front of the differential positioned correctly and then these bushes are to be installed.

NOTE: Longer front mount bolts are required when installing an S14/S15/R33/R34 differential in an S13/R32 subframe (20mm longer = 80mm thread length). Nissan OEM part number is 55424-33P00

Rear only:

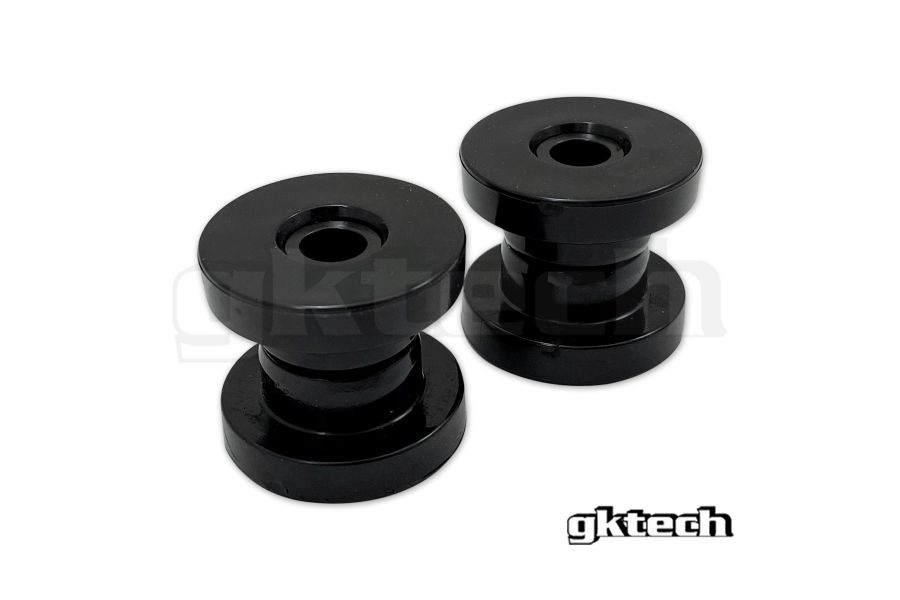

Not very common but if you're running an S13/R32 differential in an R200 subframe (2 bolt cover) you will only need the rear bushings as the front of the differential is already solid mounted.

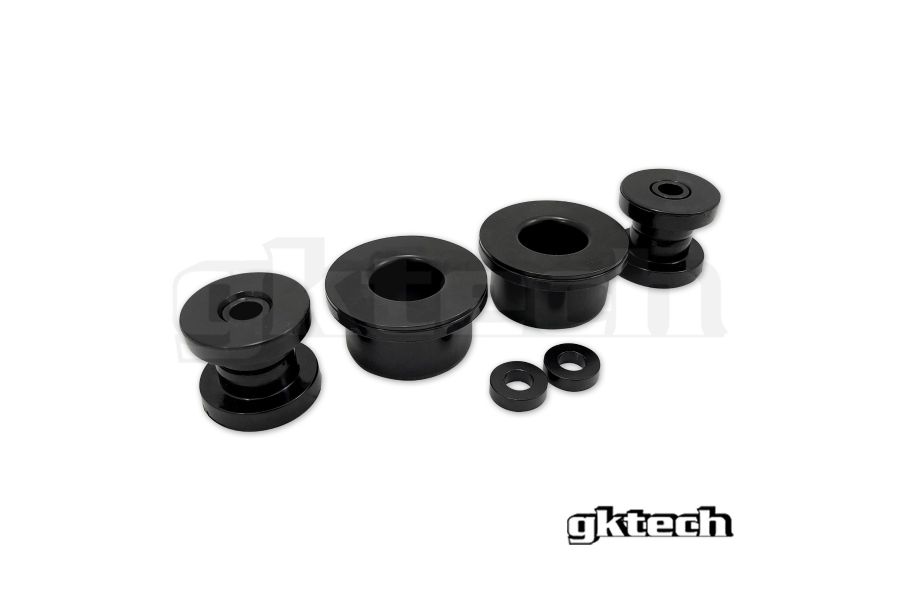

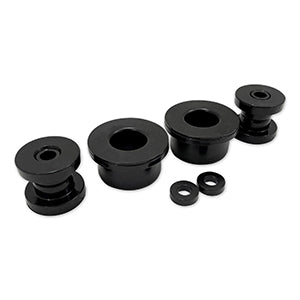

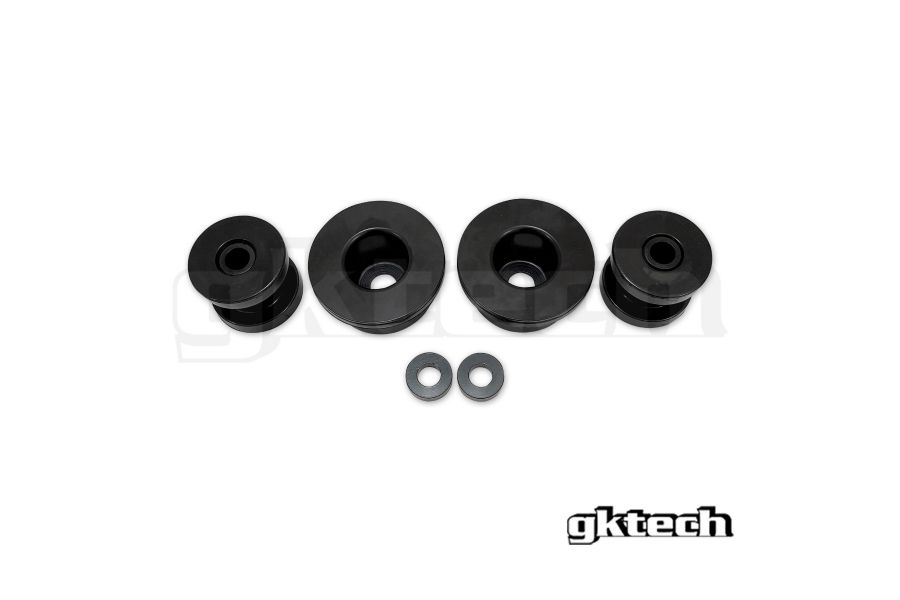

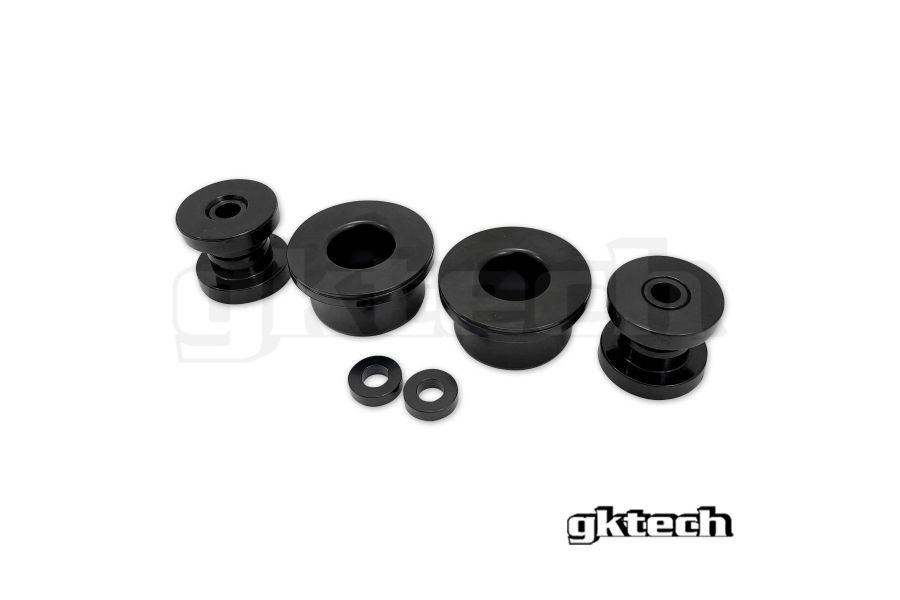

Front and rear:

All those non conversion 2 bolt cover cars. eg. S14, S15, R33, R34, C33, C34, C35 and Z32

Vehicle Compatibility

  • Nissan S13 240sx
  • Nissan S13 Silvia
  • Nissan S14 240SX
  • Nissan S15 Silvia
  • Nissan Skyline R32 GTS-T
  • Nissan Skyline R32 GTR
  • Nissan Skyline R33 GTS-T
  • Nissan Skyline R33 GTR
  • Nissan Skyline R34 GTT
  • Nissan Skyline R34 GTR
  • Nissan C33
  • Nissan C34
  • Nissan C35
  • Nissan A31 Cefiro
  • Nissan Z32 300zx (Non Turbo)

FAQ

What's the difference between solid and polyurethane differential bushings?
Solid is as the name suggests, solid. Polyurethane (80sHA in this instance) is a hard material but it does have some give resulting in less transfer of noise. Generally speaking we would say that if you drive your car hard the polyurethane bushes are the way to go. If your car is track dedicated, solid is the way to go.

What's the advantage of using the GKTech polyurethane differential bushings?
Being near solid they ensure that movement of the diff is kept to a minimum within the subframe which is quite common under hard driving conditions.

What modifications are required, is this hard to fit?
No modifications are required, simply install the front bushings by hand into the diff, and then press the rear bushes into the subframe.

Is there anything else needed for installation?
No, you can use your OEM nuts and bolts, in terms of the bushes they will arrive as shown in the product photo.

Can I install this myself? If so how long will installation take?
Yes, if the subframe is out the job so take around 30 minutes to install the bushes and diff.

Do these cause much vibration/noise in the cabin?
Not really. Obviously, anything solid or more rigid is going to cause an increase in noise and vibration. However, I'd hardly say that it's noticeable. Chances are if you're installing these you've already got coilovers, your car is lowered, you've got an aftermarket exhaust etc.

Will this fit my car?
We can only confirm fitment for the vehicles listed above under "vehicle compatibility". If your car is not listed there, then we don't know if it will fit.
