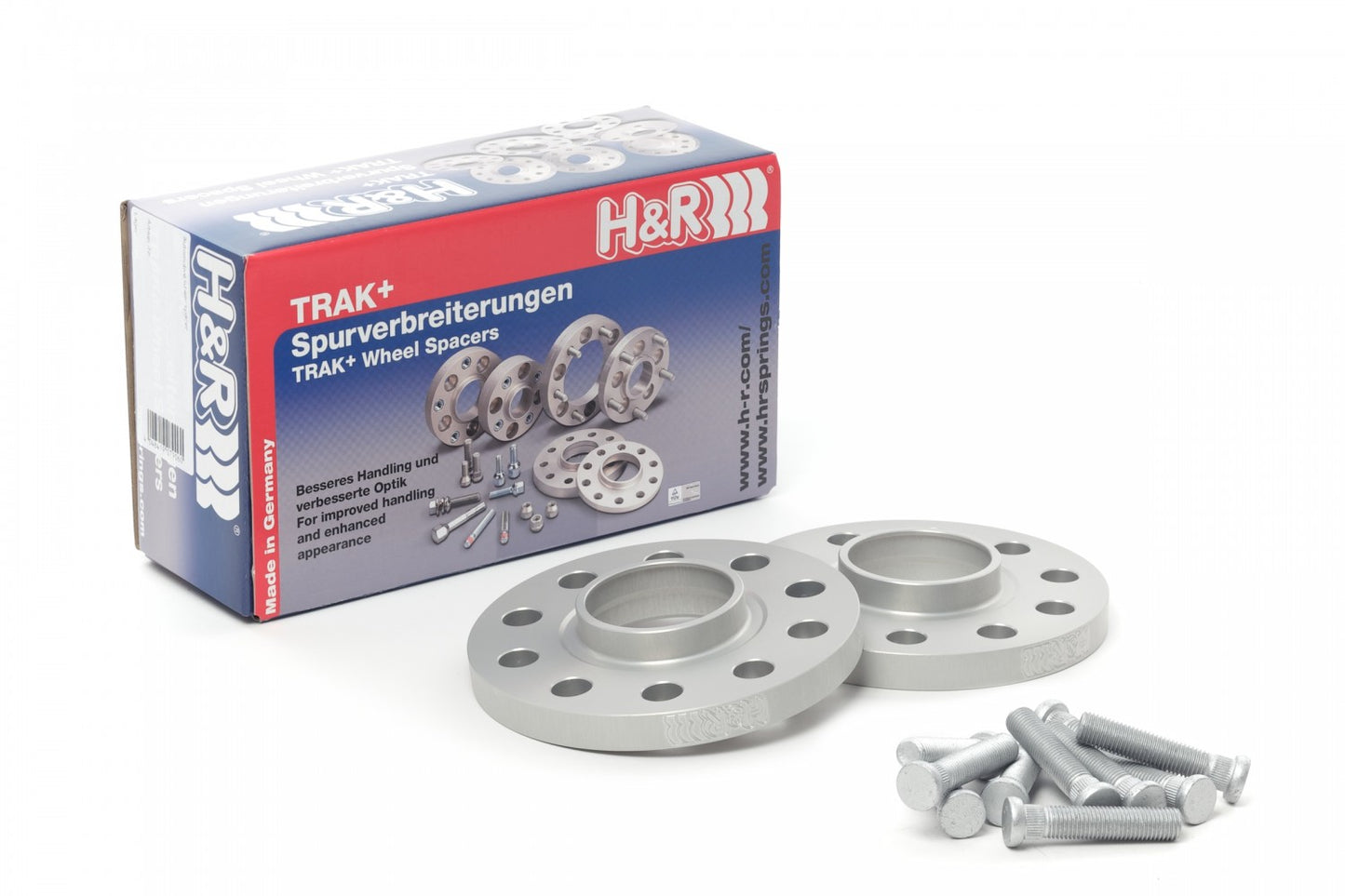

H&R TRAK+ DRS Series Wheel Spacers - Nissan
H&R TRAK+ DRS Series Wheel Spacers - Nissan
H&R TRAK+ DRS Series Wheel Spacers - Nissan
Wider is Better®! H&R TRAK+® Wheel Spacers move your wheels and tires outwards so they are more flush with the fender—instantly giving your vehicle the perfect stance. High end sports car manufacturers use every millimeter of fender space available in their design for the best looks and highest performance and so should you. With TRAK+® you can fill the gap in your fenders and GO WIDE®!
TRAK+® Wheel Spacers are manufactured from a special proprietary alloy specifically developed for H&R that is lighter and has a higher tensile strength than 6061-T6 billet aluminum. H&R TRAK+® Wheel Spacers are hubcentric and feature a full contact hub—just like the factory hub—for even load force distribution and lateral support.
DRS Series®
- 5 - 20 mm widths available
DRS Series® spacers fit between the wheel and hub, and require exchanging the existing wheel studs for longer ones (studs are included).
Applications
Model | Bolt Pattern | Center Bore | Bolt / Stud | Thread Type | Spacer Width | Part Number |
240SX Typ S14 (1995-98) 300ZX (1987-96) Maxima Typ A32 (1995-99) Maxima Typ A33 (2000-03) Maxima Typ A34 (2004-08) Murano Typ Z50 (2003-07) |
5/114.3 | 66.2 | Stud | 12x1.25 | 5mm | 1065662 |
10mm | 2065662 | |||||
15mm | 3065662 | |||||
20mm | 4065662 | |||||
240SX Typ S13 (1988-94) | 4/114.3 | 66.2 | Stud | 12x1.25 | 5mm | 10646621 |
15mm | 30646621 | |||||
20mm | 40646621 | |||||
350Z (2003-08) 350Z Roadster Typ Z33 (2004-09) |
5/114.3 | 66.2 | Stud | 12x1.25 | 5mm | 1065662 |
15mm | 3065662 | |||||
NX (1991-96) | 4/100 | 59.1 | Stud | 12x1.25 | 5mm | 1024591 |
15mm | 3024591 | |||||
20mm | 4024591 | |||||
Primera Typ P11 (1996-02) Sentra Typ B15 (2000-06) Sentra Typ B16 (2007-12) |
4/114.3 | 66.2 | Stud | 12x1.25 | 5mm | 1064662 |
10mm | 2064662 | |||||
15mm | 3064662 | |||||
20mm | 4064662 | |||||
Sentra Typ B12 (1987-90) Sentra Typ B13 (1991-94) Sentra Typ B14 (1995-99) |
4/100 | 59.1 | Stud | 12x1.25 | 5mm | 1024591 |
15mm | 3024591 | |||||
20mm | 4024591 | |||||
Sentra SE-R Spec-V Typ B16 (2007-12) | 5/114.3 | 66.2 | Stud | 12x1.25 | 5mm | 1065662 |
10mm | 2065662 | |||||
15mm | 3065662 | |||||
20mm | 4065662 |
