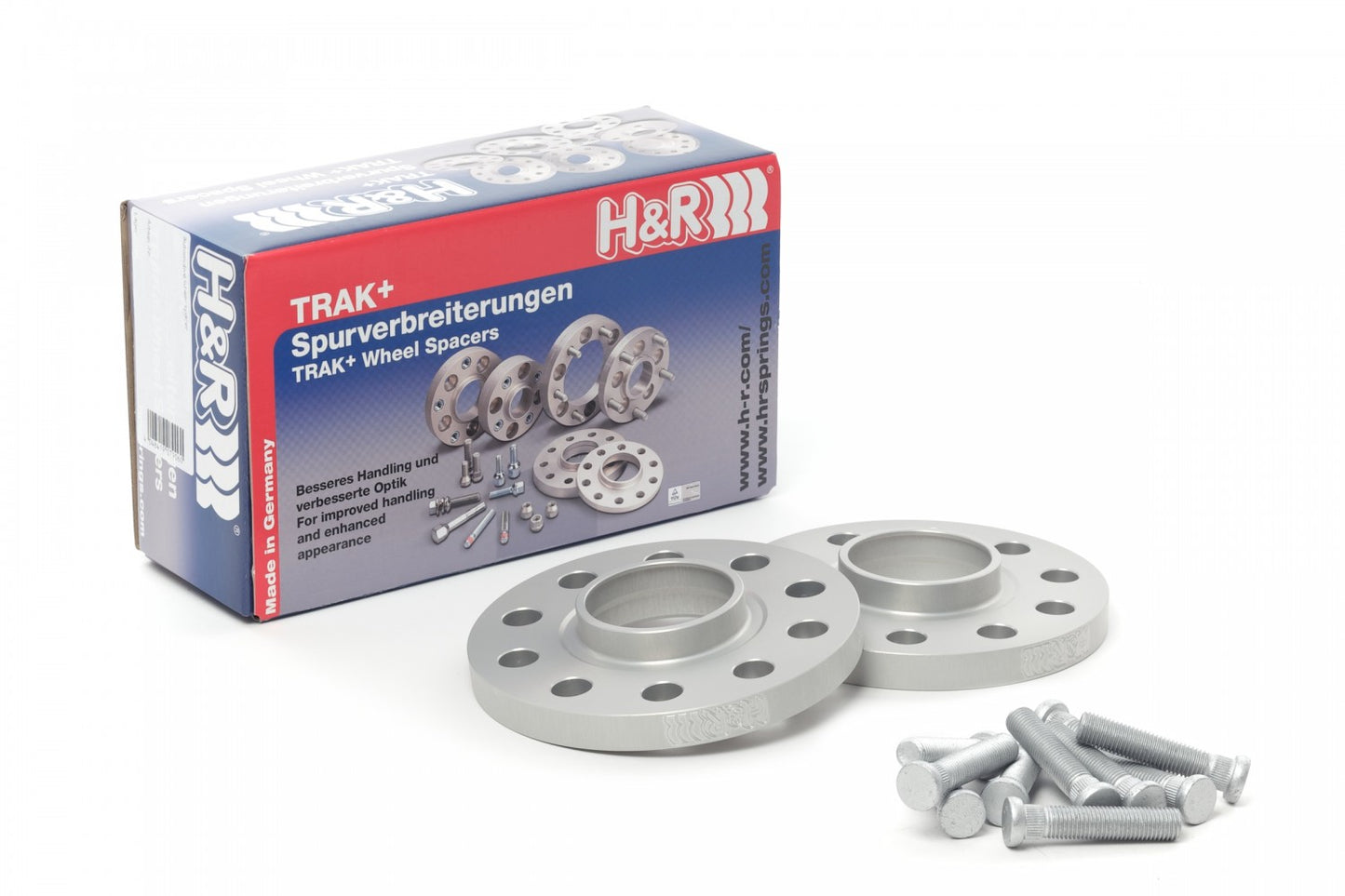

H&R TRAK+ DRS Series Wheel Spacers - Subaru
Wider is Better®! H&R TRAK+® Wheel Spacers move your wheels and tires outwards so they are more flush with the fender—instantly giving your vehicle the perfect stance. High end sports car manufacturers use every millimeter of fender space available in their design for the best looks and highest performance and so should you. With TRAK+® you can fill the gap in your fenders and GO WIDE®!
TRAK+® Wheel Spacers are manufactured from a special proprietary alloy specifically developed for H&R that is lighter and has a higher tensile strength than 6061-T6 billet aluminum. H&R TRAK+® Wheel Spacers are hubcentric and feature a full contact hub—just like the factory hub—for even load force distribution and lateral support.
DRS Series®
- 5 - 20 mm widths available
DRS Series® spacers fit between the wheel and hub, and require exchanging the existing wheel studs for longer ones (studs are included).
Applications
Model | Bolt Pattern | Center Bore | Bolt / Stud | Thread Type | Spacer Width | Part Number |
2.5 RS Typ GD, GG Sedan, Sport Wagon (2001-03) 2.5 RS Typ GD, GG Sedan, Sport Wagon (2004-07) BRZ (2013-20) Forester (1997-16) Impreza Sedan, Hatchback (2008-11) Impreza Sedan, Hatchback (2012-16) Impreza Sedan, Hatchback (2017-21) Impreza Typ GC, GF, GM incl wagon (1993-01) Impreza Typ GD, GG Sedan, Sport Wagon (2001-03) Impreza Typ GD, GG Sedan, Sport Wagon (2004-07) Legacy Typ BC, BD, AWD (1990-98) Legacy Typ BL (2005-09) Legacy Wagon Typ BE/BH (1999-04) TS Typ GD, GG Sedan, Sport Wagon (2001-03) TS Typ GD, GG Sedan, Sport Wagon (2004-07) WRX Sedan, Hatchback (2008-14) WRX Typ GD, GG Sedan, Sport Wagon (2001-03) WRX Typ GD, GG Sedan, Sport Wagon (2004-07) |
5/100 | 56 | Stud | 12x1.25 | 5mm | 1025560 |
5mm | 1025560SW | |||||
15mm | 3025560 | |||||
15mm | 3025560SW | |||||
STi Typ G3 (2008-10) STi Typ GD (2005-07) STi Sedan (2011-14) |
5/114.3 | 56 | Stud | 12x1.25 | 15mm | 30655600 |
15mm | 30655600SW | |||||
STi (2015-21) WRX (2015-21) |
5/114.3 | 56 | Stud | 12x1.25 | 15mm | 30655600 |
15mm | 30655600SW |
