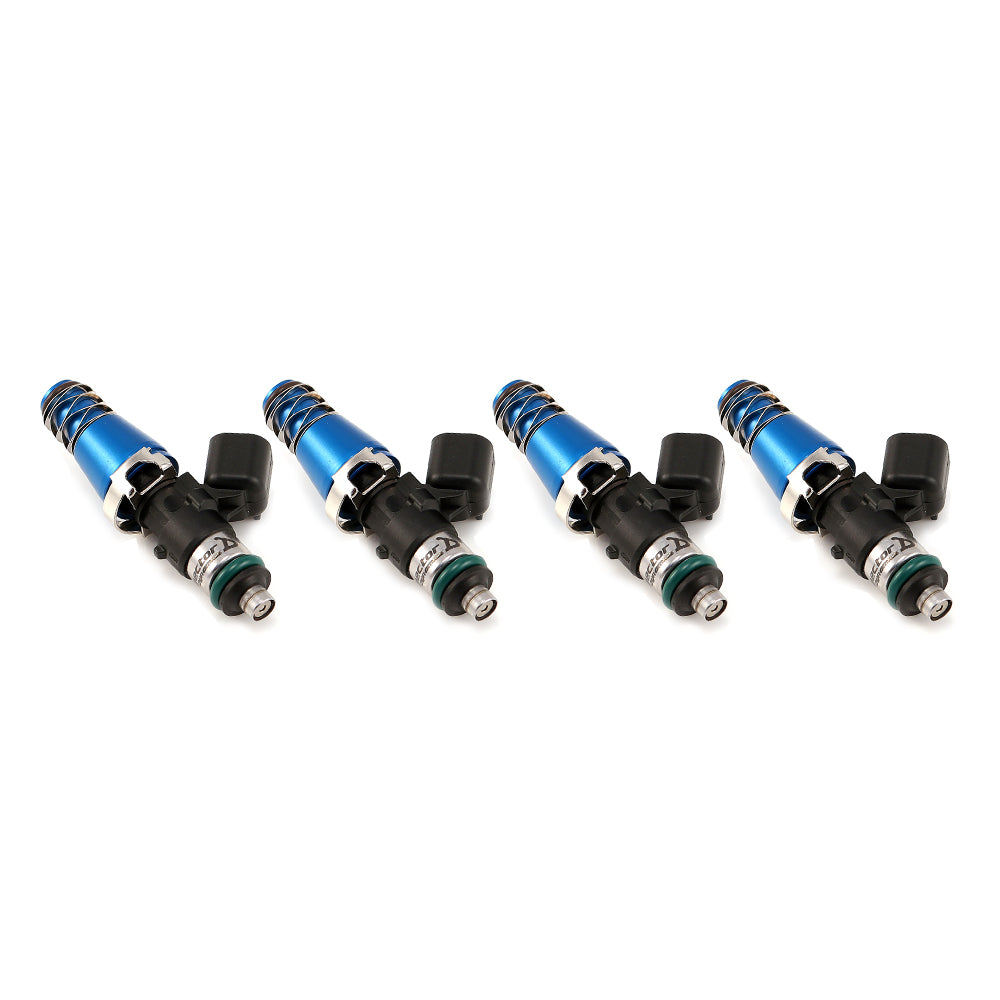

Injector Dynamics ID 1700 X Series

  • Sale
  • Regular price $1,160.00
  • Will not ship until
Shipping calculated at checkout.


Injector Dynamics ID 1700 X Series

The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.
A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.

Note

The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.

The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.

If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.

    Specifications

    • Nominal Flow Rate – 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
    • Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
    • Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
    • Electrical Connector – USCAR

      Fitment

      Universal 1700.34.14.14
      1700.34.14.15
      1700.48.11.14
      1700.48.11.WRX
      1700.48.11.F20
      1700.48.14.14
      1700.48.14.15
      1700.48.14.R35
      1700.48.14.14B
      1700.60.14.14
      1700.60.14.14-O
      1700.60.14.D
      1700.60.14.14B
      1700.60.11.14
      1700.60.11.14-O
      1700.60.11.D
      Arctic Cat 1100 Turbo 09-16 1700.28.01.36.11.4
      Audi Audi 1.8L Turbo 1700.60.14.14B.4
      Audi 2.0L Turbo 1700.60.14.14B.4
      R8 2015+ 1700.34.14.14.10
      Audi RS3/TTRS 1700.34.14.14.5
      Audi VR6 (12 valve) 1700.60.14.14B.6
      Audi VR6 (24 valve) N/A
      BMW E30 M3 88-91 1700.60.14.14.4
      E36 M3 96-99 1700.60.14.14.6
      E46 M3 01-06 1700.48.14.14.6
      E90 / E92 / E93 M3 07+ 1700.48.14.14.8
      M Coupe / M Roadster 98-00
      1700.60.14.14.6
      540i / 740i 1700.60.14.14.8
      328 96-98 1700.60.14.14.6
      Buick Turbo Regal 1700.60.14.14.6
      Grand National 1700.60.14.14.6
      Cadillac CTS-V 09-14 (LSA) 1700.34.14.15.8
      Can Am Outlander ATV 08 1700.48.14.14.2
      Chevrolet LS3/LS7/L76/L92/L99 1700.34.14.15.8
      LS2 1700.48.14.15.8
      LS1/LS6 1700.60.14.14.8
      Camaro 93-96 (LT1) 1700.60.14.14.8
      Camaro 98-01 (LS1) 1700.60.14.14.8
      Camaro 10+ (LS3) 1700.34.14.15.8
      Camaro ZL1 (LSA) 1700.34.14.15.8
      C5 Corvette (incl Z06) 1700.60.14.14.8
      C6 Corvette 1700.34.14.15.8
      C6 Z06 (LS7) 1700.34.14.15.8
      C6 ZR1 (LS9) 1700.34.14.15.8
      Cobalt SS (super) 1700.60.14.14B.4
      Dodge / Chrysler Neon SRT-4 1700.48.14.14.4
      Caliber SRT-4 1700.48.14.14.4
      300C SRT-8 1700.48.14.14B.8
      Challenger SRT-8 1700.48.14.14B.8
      Magnum SRT-8 1700.48.14.14B.8
      Hellcat/Trackhawk/Demon
      1700.48.14.14.8
      Viper 03-07 1700.60.14.14.10
      Ram SRT-10 04-06 1700.60.14.14.10
      Viper 08+ 1700.48.14.14B.10
      Ford Focus ZX3 1700.60.14.14.4
      Focus SVT 1700.60.14.14.4
      Focus RS 1700.60.14.14.4
      Focus RS MK II-IV 1700.60.14.14.5
      SVT Lightning 1700.60.14.14.8
      F150 Harley Davidson 1700.60.14.14.8
      Mustang SVO 1700.60.14.14.4
      Mustang GT 88-96 1700.60.14.14.8
      Mustang GT 97-04 1700.60.14.14.8
      Mustang GT 05-10 1700.60.14.14.8
      Mustang GT 2011+ (includes GT350)
      1700.60.14.14B.8
      Mustang Cobra 99-04 1700.60.14.14.8
      Mustang GT500 07-14 1700.48.14.14.8
      Mustang GT500 2020+ 1700.60.14.14B.8
      Falcon GT and GS 5.0 – 2010+
      1700.60.14.14.8-PU
      Falcon XR6T (FG) 1700.48.14.14B.6
      Falcon XR6T (BA and BF)
      1700.60.14.14B.6
      SVT Raptor 2011-2014 1700.60.14.14.8
      Raptor 2017+ 1700.34.14.14.6
      Holden Commodore VT (V6) 1700.60.14.14.6
      Commodore VTII (LS1) 1700.60.14.14.8
      Commodore VX (LS1) 1700.60.14.14.8
      Commodore VXII (V6) 1700.60.14.14.6
      Commodore VY (LS1) 1700.60.14.14.8
      Commodore VS/VY (SCV6)
      1700.60.14.14.6
      Commodore VZ (LS2) 1700.48.14.15.8
      Commodore W427 1700.34.14.15.8
      Commodore E-HSV 1700.34.14.15.8
      Monaro (LS1) 1700.60.14.14.8
      Monaro (LS2) 1700.48.14.15.8
      Honda/Acura Accord 92-95 1700.60.11.14.4
      Accord 96-02 1700.60.11.14.4
      Accord 03-07 1700.48.11.F20.6
      Civic 88-95 1700.60.11.14.4
      Civic 96-00 1700.60.11.14.4
      Civic 02-05 Si 1700.48.14.14.4
      Civic 06-11 1700.48.14.14.4
      Odyssey 02-04 1700.48.11.F20.6
      Prelude 92-96 1700.60.11.14.4
      Prelude 97-01 1700.60.11.14.4
      S2000 00-05 1700.48.11.F20.4
      S2000 06-09 1700.48.14.14.4
      CL 01-03 1700.48.11.F20.6
      Integra 90-95 1700.60.11.14.4
      Integra 96-01 1700.60.11.14.4
      NSX 91-95 1700.60.11.14-O.6
      NSX 96-05 1700.60.11.14-O.6
      RSX 02-09 1700.48.14.14.4
      TL 01-03 1700.48.11.F20.6
      TSX 04-10 1700.48.14.14.4
      Honda Powersports CBR1000RR 2004-2007 1700.07.01.48.11.4
      CBR1000RR 2008+ 1700.07.02.34.11.4
      Hyundai Genesis 2.0t 09-12 1700.48.14.R35.4
      Genesis 2.0t 13-14 1700.60.14.14.4
      Genesis V6 09+ 1700.34.14.14.6
      Infiniti G35 1700.48.14.14.6
      G37 1700.48.14.R35.6
      G20 91-96 (11mm) 1700.60.11.14.4
      G20 91-96 (14mm) 1700.60.14.14.4
      G20 99-02 (11mm) 1700.60.11.14.4
      G20 99-02 (14mm) 1700.60.14.14.4
      Kawasaki ZX14 1700.48.11.D.4
      Lamborghini Gallardo 04-13 1700.48.14.14.10
      Huracan 1700.34.14.14.10
      Lexus GS300 1700.60.11.D.6
      IS300 1700.60.11.D.6
      SC300 1700.60.11.D.6
      SC400 1700.60.11.D.8
      Lotus Exige/Elise 05+ 1700.30.01.60.11.4
      Mazda Miata 90-05 1700.11.02.60.11.4
      Mazdaspeed Miata 1700.11.02.60.11.4
      Miata 06-14 1700.60.14.14B.4
      RX-7 79-84 (11mm) 1700.11.03.60.11.2
      RX-7 79-84 (14mm) 1700.11.06.60.14.2
      RX-7 85-86 (11mm) 1700.11.03.60.11.2
      RX-7 85-86 (14mm) 1700.11.06.60.14.2
      RX-7 87-92 (11mm) 1700.11.03.60.11.2
      RX-7 87-92 (14mm) 1700.11.06.60.14.2
      RX-7 93-95 (11mm) 1700.11.03.60.11.2
      RX-7 93-95 (14mm) 1700.11.06.60.14.2
      RX-8 03-11 (secondaries only)
      1700.60.11.D.2
      McLaren MP4-12C 1700.34.14.14.8
      570S 1700.34.14.14.8
      600LT 1700.34.14.14.8
      650S 1700.34.14.14.8
      675LT 1700.34.14.14.8
      P1 1700.34.14.14.8
      720S 1700.34.14.14.16
      Senna 1700.34.14.14.16
      Mitsubishi Evo III – IX 1700.60.11.D.4
      Evo X 1700.48.14.14B.4
      Eclipse GST/GSX 1700.60.11.D.4
      Galant VR4 1700.60.11.D.4
      3000GT VR4 1700.60.11.D.6
      Nissan 300ZX TT (90-96) 11mm 1700.60.11.14.6
      300ZX TT (90-96) 14mm
      1700.60.14.14.6
      350Z 1700.48.14.14.6
      370Z 1700.48.14.R35.6
      GTR-R32, R33, R34 (11mm)
      1700.60.11.D.6
      GTR-R32, R33, R34 (14mm)
      1700.60.14.D.6
      GTR (R35) 1700.48.14.R35.6
      GTR (R35) FOR V1 T1 Rails
      1700.60.14.14-O.6
      240SX-S13/S14/S15 (11mm)
      1700.60.11.14.4
      240SX-S13/S14/S15 (14mm)
      1700.60.14.14.4
      SR20DET FWD (11mm) 1700.60.11.14.4
      SR20DET FWD (14mm) 1700.60.14.14.4
      Patrol 1700.48.14.14.6
      Sentra SE-R Spec V 00-06
      1700.48.14.14.4
      Titan 04+ 1700.48.14.14.8
      Pontiac Firebird (93-97) LT1 1700.60.14.14.8
      Firebird (98-02) LS1 1700.60.14.14.8
      Trans-Am (93-97) LT1 1700.60.14.14.8
      Trans-Am (98-02) LS1 1700.60.14.14.8
      Turbo T/A (89 Anniv.) 1700.60.14.14.6
      GTO (2004) LS1 1700.60.14.14.8
      GTO (2005-2006) LS2 1700.48.14.15.8
      G8 GT 1700.34.14.15.8
      G8 GXP 1700.34.14.15.8
      Porsche 996/997.1 1700.60.14.14.6
      996/997.1 TT 1700.48.14.14.6
      993/911 84-98 (non turbo)
      1700.60.14.14.6
      Saturn Ion Redline 1700.60.14.14.4
      Sky (Non turbo) 1700.60.14.14.4
      Sky Redline (turbo) N/A
      Scion tC (05-10) 2.4L 1700.17.01.60.11.4
      xB (01-15) 1700.60.11.D.4
      FR-S (2013+) 1700.18.04.36.11.4
      Ski-Doo 1200 E-Tec 09-12 1700.48.14.14.3
      Subaru STi (04-06) 1700.18.01.48.14.4
      WRX (02-14) / STi (07-17)
      1700.48.11.WRX.4
      Legacy GT / Forester XT (07-11)
      1700.48.11.WRX.4
      BRZ (2013+) 1700.18.04.36.11.4
      Suzuki Hayabusa 99-07 1700.19.01.48.11.4
      Hayabusa Gen 2 – 8 inj 1700.HTP.34.11.4
      Toyota Corolla GTS (83-87) 4AGE 1700.60.11.D.4
      Corolla CE, S, LE (03-04)
      1700.60.11.D.4
      Matrix (01-03) 1700.60.11.D.4
      MR-2 Turbo (90-96) 3S-GTE (11mm)
      1700.60.11.14.4
      MR-2 Turbo (90-96) 3S-GTE (14mm)
      1700.60.14.14.4
      MR-2 N/A (90-96) 5SFE 1700.60.11.D.4
      MR-2 Spyder (00-05) 1ZZ-FE
      N/A
      Supra Turbo (87.5-92) 7M-GTE
      1700.60.11.D.6
      Supra Turbo (93-98) 2JZ-GTE (11mm)
      1700.60.11.14.6
      Supra Turbo (93-98) 2JZ-GTE (14mm)
      1700.60.14.14.6
      Supra NA (93-98) 2JZ-GE
      1700.60.11.D.6
      Celica All-Trac (89-99) 3S-GTE (11mm)
      1700.60.11.14.4
      Celica All-Trac (89-99) 3S-GTE (14mm)
      1700.60.14.14.4
      Celica GT (00-05) 1ZZ-FE
      1700.60.11.D.4
      Celica GTS (00-05) 2ZZ-GE
      1700.30.01.60.11.4
      Landcruiser 1700.60.11.D.6
      FJ Cruiser / 4Runner / Tundra
      1700.60.14.D.6
      Volkswagen VW 1.8T 1700.60.14.14B.4
      VW 2.0T 1700.60.14.14B.4
      VW VR6 (12v) 1700.60.14.14B.6
      VW VR6 (24V) N/A
      Yamaha FX-SHO/FZ Watercraft 1700.27.01.48.11.4
      Apex Snowmobile 06-12
      1700.48.11.14.4
      Nytro Snowmobile 08-12
      1700.48.11.14.3
      YXZ1000 UTV 2600.27.02.34.11.3
