Radium Engineering Direct Mount Fuel Cell Filler

Radium Engineering Direct Mount Fuel Cell Filler

Product Inventory
Regular price $99.70
Regular price $104.95 Sale price $99.70
Sale Sold out
Shipping calculated at checkout.

Radium Engineering Direct Mount Fuel Cell Filler

Installation instructions

The Radium Engineering fuel cell fill kits can be used on any cell that uses a 6-bolt 2.18" (55mm) bolt circle mounting flange. This bolt pattern is used on all Radium Engineering Fuel Cell Surge Tanks. Screw threads are the industry standard 1/4"-28.

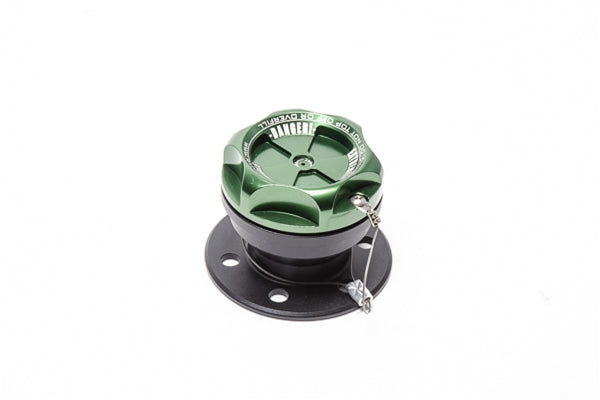

20-0197-V Direct Mount Fill Neck and Cap

The 20-0197-V Direct Mount Fill Neck and Cap is perfect for filling directly into the fuel cell, as shown. This kit uses the 20-0148-V Fill Neck Cap (included) so filling is quick and simple.

-Machined and Anodized Aluminum Fill Neck
-Anodized and Laser Etched Aluminum Cap
-FKM Gasket Flange Seal
-FKM O-ring Cap Seal
-Stainless Steel Hardware

20-0495-V Dry Break, 1.5in, Female, Direct Mount, Vented
Designed for direct mounting onto a fuel cell. For mating, a 6-bolt flange with a 2.18" PCD bolt circle (as found on the FCST) is required. Includes 20-0549-V Dry Break, 1.5in, Female, Vented as well as an aluminum housing, stainless steel hardware, and a gasket. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).


Height: 3.43" (Dry Break to Gasket)
Mate: 20-0496 Dry Break, 1.5in, Male

20-0148-V Fill Neck Cap Only
This is replacement fill neck cap. Compatible with Radium Engineering 20-0197-V.


-Vented Fuel Fill Cap
-Roll Over Protection
-FKM O-ring
-Tether Hardware

20-0360 Filler Block-Off
This kit blocks off the filler hole on the Radium FCST units.


-Machined and Anodized Aluminum Blank Plate
-FKM Gasket Flange Seal
-Stainless Steel Hardware

18-0019 Gasket, 6-Bolt Fill Neck, 2.18" BC
This gasket is used for Radium fuel cell fill necks. The 1/16" thick material is a premium quality variation of FKM. It uses 6 equally-spaced holes with a 2.18" bolt center.
