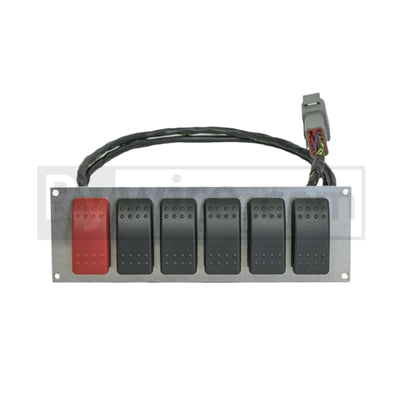

Rywire Switch Panel

Rywire (6 Position) Switch Panel Consists Of:

• 6 Water Resistant Rocker 20A 12V Switches - 1 Master/Ignition, Momentary Starter, and On-Off.
• Aluminum bezel measurement: 7.3/4" Width x 2.5" Height
• Built using tefzel wire and Raychem DR25 heat shrink tubing
• Finished with a 12 pin DTM connector (When purchased separately, mating connector is included)

Red switch is configured high-side activated
Starter momentary switch is configured low-side activated
Remaining on/off switches are configured 3 low-side activated and 1 high-side activated.

• These are configured to control pumps or motors. Low-side switches are rated up to 8A and the High-side switch is rated up to 20A.
