SPL Parts Rear Toe Arms S14

SPL Parts Rear Toe Arms S14

Product Inventory
Regular price $359.10
Regular price Sale price $359.10
Sale Sold out
Shipping calculated at checkout.

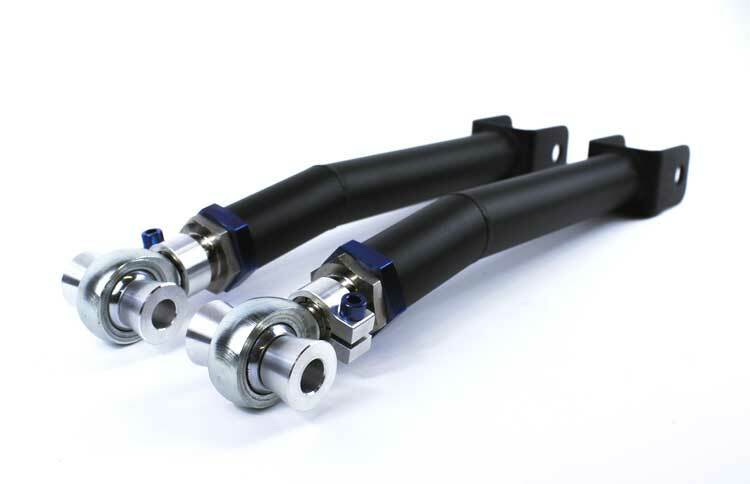

SPL Parts Rear Toe Arms S14

SPL Parts TITANIUM Series Rear Toe Rods (RTA) allow for an increased range of rear toe adjustment, necessary for lowered cars or for performance alignments.

These adjustable arms feature 1.25" 4130 Chromoly tubing, slipped over a CNC machined angled steel sleeve, then professionally tig welded.  The angled sleeve prevents the rod from hitting the subframe bushings on lowered cars, while allowing us to use hollow tubing to keep the rod incredibly strong yet lightweight.  Our exclusive 4130 Chromoly Double Adjuster offers quick, precise adjustment, and is CNC gun drilled to reduce weight.  Blue Anodized Titanium hardware shaves even more unsprung weight from the arms, without compromising strength.

3 piece FK Bearings Rod Ends manufactured in Connecticut feature a Teflon liner to provide quiet operation, low friction, smooth articulation, and eliminates bushing deflection under load.  The PTFE liner is chemically bonded to the inner diameter of the race. The liner offers a very high load carrying capacity and has greatly increased dynamic wear characteristics. The operating temperatures of the liner ranges from -65º to 325ºF, offering robust reliability for both street and track use.

Combine with our SPL Parts TITANIUM Series Rear Upper Arms (#SPL RUA S13) and SPL Parts Eccentric Lockout kit (#SPL EL S14) for total rear camber and toe alignment with "zero-slip".

Sold as a pair.

Made in the USA.


    • 1995-1998 Nissan 240SX (S14)
