Walbro Intank Fuel Pump 255LPH High Pressure - Universal

Walbro Intank Fuel Pump 255LPH High Pressure - Universal

Product Inventory
Regular price $85.36
Regular price Sale price $85.36
Sale Sold out
Shipping calculated at checkout.

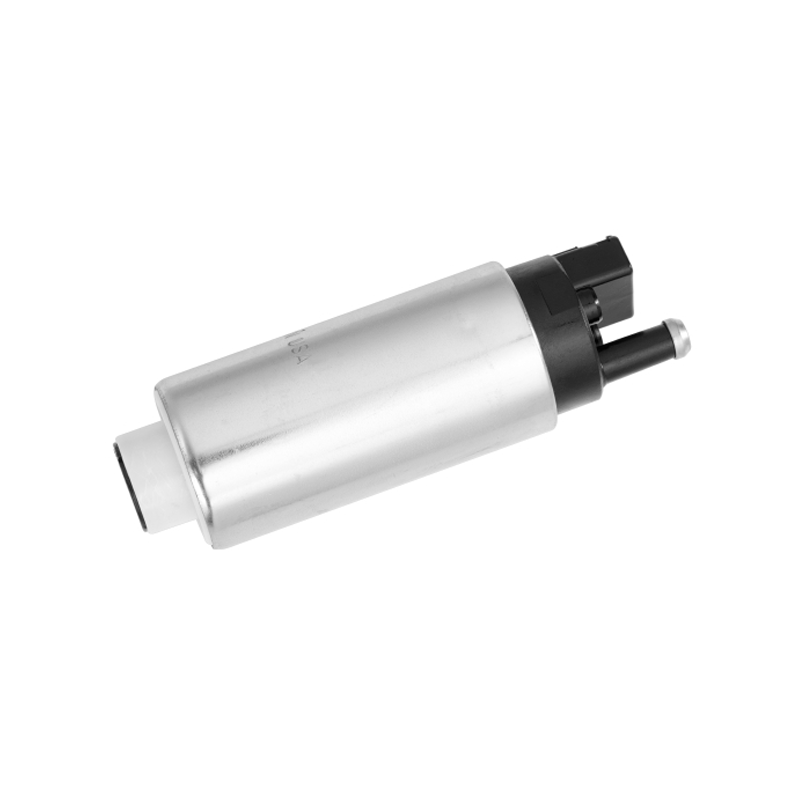

Walbro/TI Automotive Intank Fuel Pump 255LPH High Pressure - Universal

The Walbro high output in-tank electric fuel pumps are available in flow ratings of 255 liters of fuel per hour. These particular pumps flow significantly more fuel at higher pressure than standard-pressure versions. For example, at 80 PSI the standard 255 lph pump will flow around 132 liters (35 gallons) per hour. At that same 80 PSI the equivalent HP (high pressure) fuel pump will flow over 210 liters (50 gallons) per hour.

Walbro in-tank electric fuel pumps utilize a proven gerotor design. The outside dimensions, however, are compact enough to fit existing hanger assemblies, without modification. Coverage includes most popular Acura and Honda, and many other Import applications.

  • Horsepower: 500HP+
  • Flow Rate: 255LPH
  • Lightweight, compact design.
  • QS9000 certified. - Made in USA

GSS340 : 22mm center inlet
GSS341 : 11mm inlet, 180 degrees from the outlet
GSS342 : 11mm inlet, in line with the outlet
