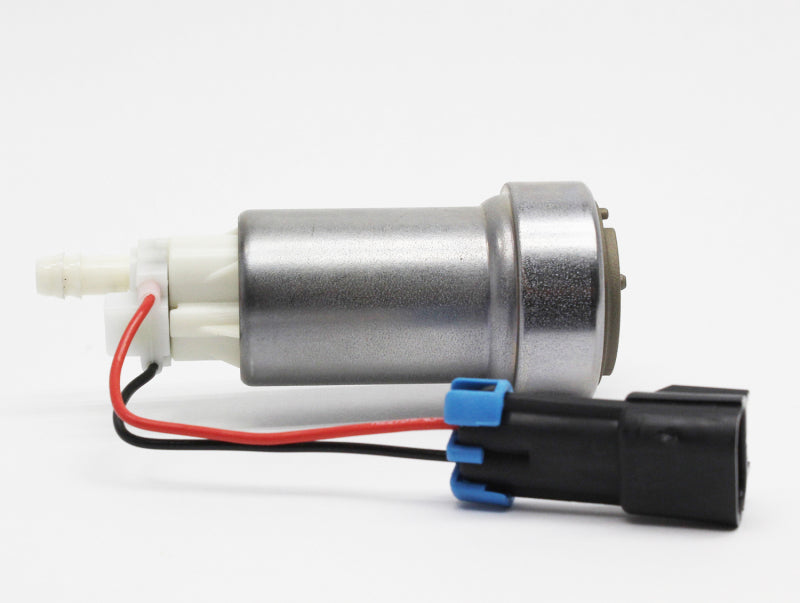

Walbro Universal 535lph In-Tank Fuel Pump E85 Version
Dual channel turbine design for maximum efficiency under high pressure and high temperature applications. Made in USA by TI Automotive (parent company of Walbro). All pumping components have been validated to OEM specifications for approved use in E85/flex fuel applications. 100% Authentic & Genuine Walbro/TI Automotive E85 Racing in-tank high pressure fuel pump.
The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for E85 or gasoline applications. The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge. This results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that’s 30 percent higher than conventional pumps.
Outlet Diameter: 10mm (3/8")
Diameter (upper body) 39mm
Diameter (lower body) 50mm
This is the same fuel pump as the Walbro F90000285 "Hellcat" except it does not have a check valve integrated into the outlet. This permits more flow and less current draw making it perfect for a fuel surge tank "lift" pump. If a high flow check valve is required, 20-0598 can be used.

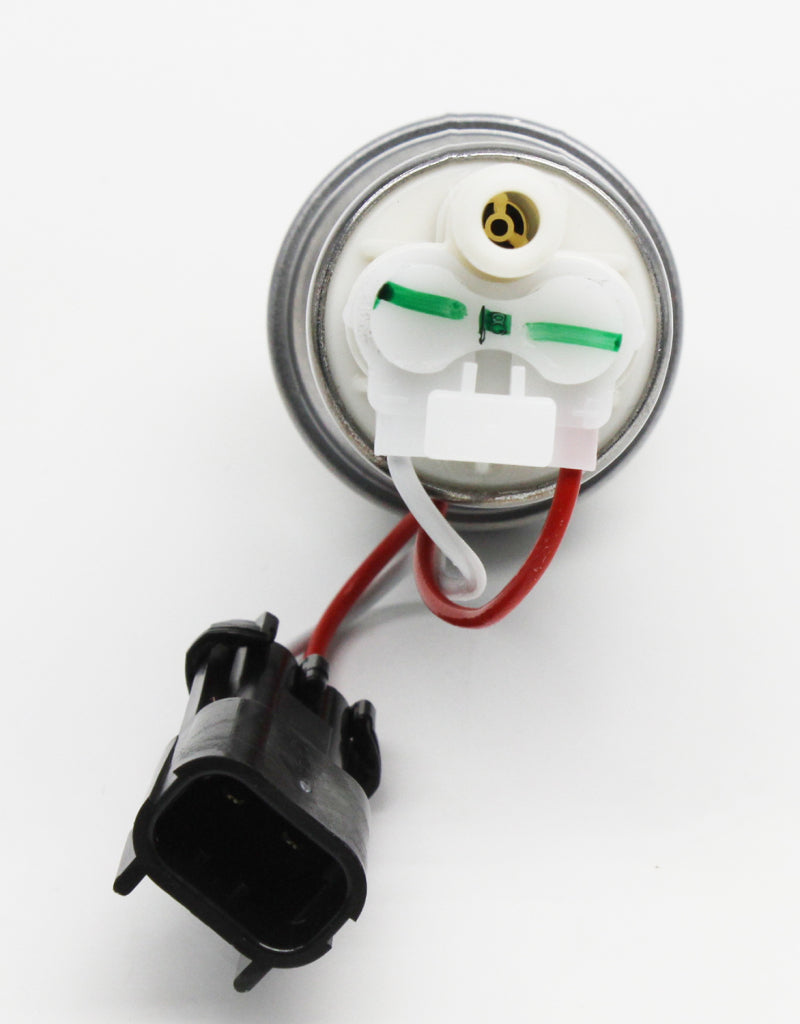

The other minor difference is the Walbro F90000295 wiring harness is 10mm longer and is identified with red and white wires (instead of red/black).
1. Physical dimensions of Walbro F90000295/285/274/267 pumps are identical.
2. Does NOT include an "install kit" (filter sock, wiring pigtail, hose, clamps, etc.)
3. This fuel pump is compatible with 14-0143 Fuel Pump Filter Sock.
RADIUM ENGINEERING 13.5V TESTING
