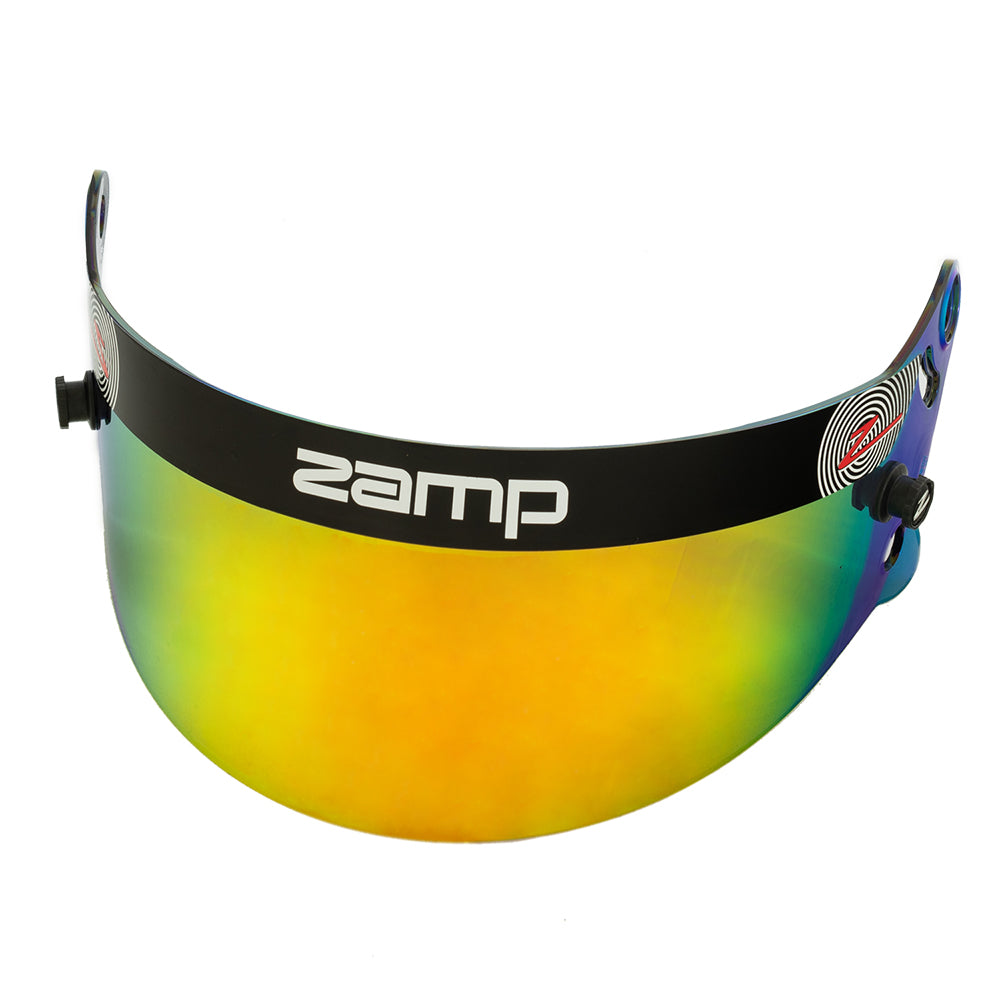

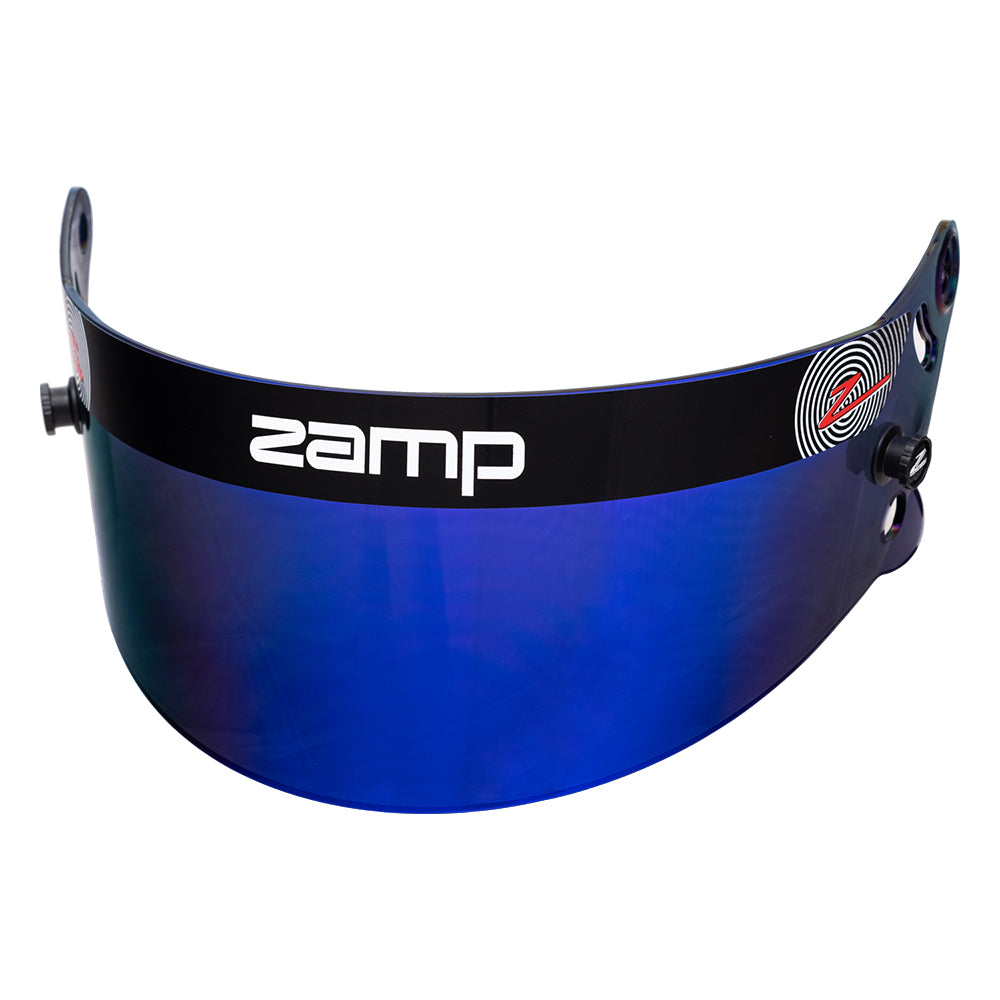

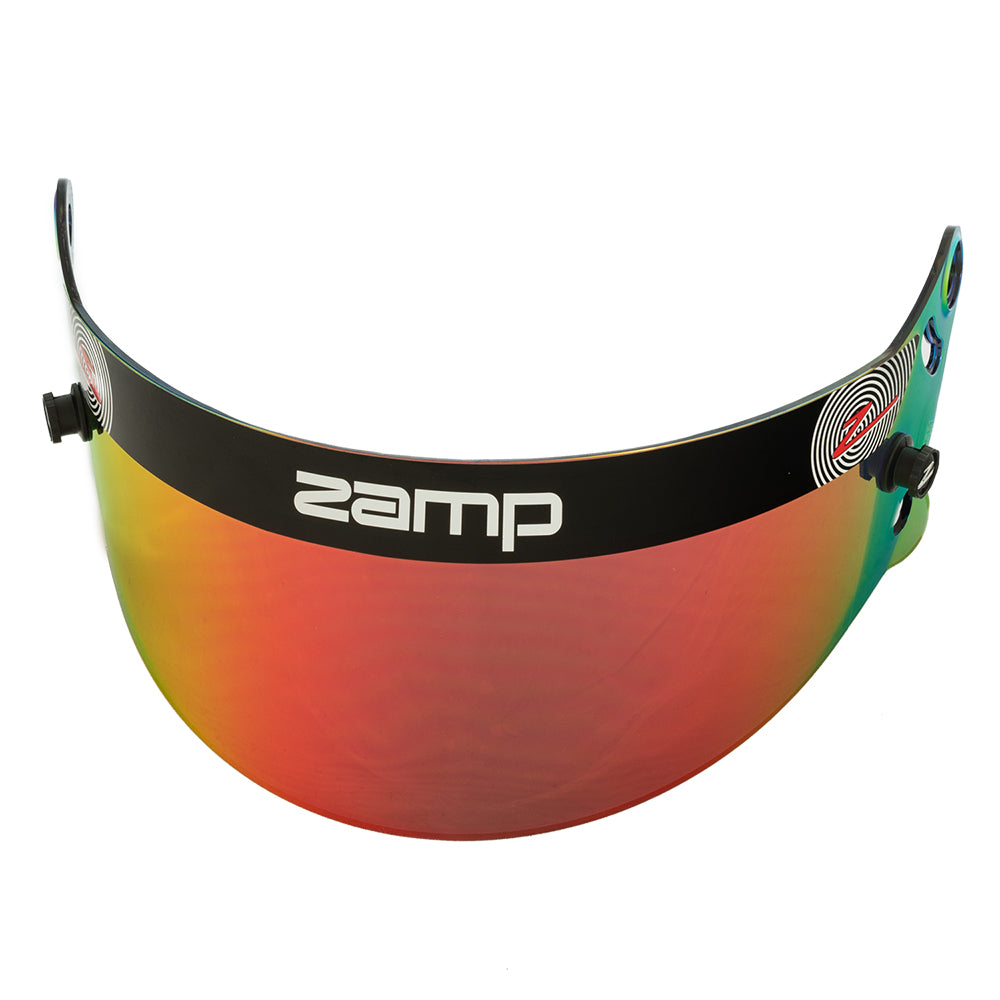

Zamp Z-20 Prism Visor
The Z-20 helmet shield is compatible with the following helmets.
- RZ-42Y / RZ-42Y Graphic
- RZ-70E / RL-70E
- RZ-62 / RZ-62 Graphic / RZ-62 Air
- RZ-60 / RZ-60V
- RZ-36 / RZ-36 DIRT / RZ-36 Air
- RZ-56 / RZ-56 Air
- RZ-65D Graphic
ReplacementNOTE: DO NOT USE power tools or overtighten screws when changing shields.
Step 1 - Lay a towel on a flat surface and set the helmet on it.
Step 2 - Remove the shield pivot tensioners on each side. (This is the smaller screw on the sides of the shield.)
Step 3 - Remove the shield pivot screws on each side. (This is the larger screw on the sides of the shield. For best results, we suggest using a quarter to loosen/tighten these screws.)
Step 4 - Remove the shield. We suggest using a soft cloth towel to wipe down the rubber seal as well as where the shield mounts to the helmet for best results.
Step 5 - Place the new shield on the helmet. There are two white washers that go between the shield and helmet, make sure these are in place before re-installing the shield pivot screws.
Step 6 - Hand thread the shield pivot screws to hold the shield in place. Once hand threaded, use a quarter to tighten until snug with the helmet shell. Do not overtighten.
Step 7 - Hand thread the shield pivot tensioners, then tighten to desired tension for shield movement.
