AIM MXP Dash Data Logger

AIM MXP Dash Data Logger

Product Inventory
loading..
Regular price $2,599.00
Regular price Sale price $2,599.00
Sale Sold out
Shipping calculated at checkout.
Cable Length

AIM MXP Dash Data Logger

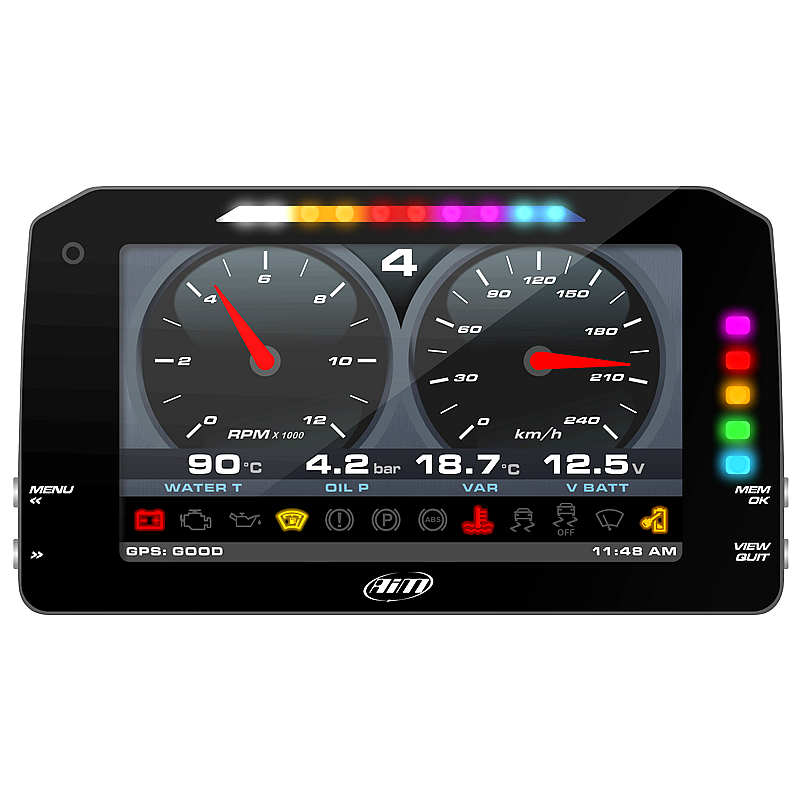

The MXP Dash Logger features a 6' wide colour TFT display which offers great visual impact. It is configurable to show all the data coming from your vehicles engine control unit (ECU).

The dash logger has an integrated shift array and configurable multicolour alarms, also drag and drop multi-page configuration. With Wi-Fi and USB connectivity, GPS module, Inertial platform, analog and digital inputs, motorsport connectors, 4GB of internal memory, 1,000Hz per channel sampling and support for over 1,000 ECU connections.

This package is suitable for both cars and motorcycles.

Included

  • MXP
  • GPS Module with cable
  • USB cable
  • 37 pins standard harness
  • Race Studio 3 software

A wide range of data sources

The Aim MXP offers 50% more display area than the 5” MXS display, in a similar dimension. The dash logger has an integrated shift array, configurable multicolor alarms, drag and drop multi page configuration, Wi-Fi and USB connectivity, GPS Module, inertial platform, analog and digital inputs, digital outputs, Motorsport connectors, 4 GB of internal memory, 1,000Hz per channel sampling and support for over 1,000 ECU connections.

MXP samples data coming from your ECU, the GPS Module, the 9 axis inertial platform (accelerometer, gyro and magnetometer), 8 fully configurable analog inputs, 6 digital inputs, predefined math channels and second CAN. Performance and data acquired can also be incremented adding up to eight expansion modules.

Freely configurable pages

You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two push buttons.

MXS Strada High Contrast TFT display

High Contrast TFT Display

AIM MXP features a high contrast TFT display: its visual quality is always optimal as its ambient light sensor keeps the back light at the best brightness levels. The dash is of course available also in the “Street Icons” version (fuel, oil, water temp etc.)

MXS Strada High Contrast TFT display

Flexible alarms & custom street icons

MXP features five configurable RGB alarm LED’s. You choose the conditions, you choose the colours.  Select a solid alarm or flashing one – and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities. Select then the street icons you need among the wide list you will find in “Race Studio 3 – Icons Management” and set them up the way you prefer or according with your needs. Any of them is fully configurable and if this shouldn’t be enough, you will be able to upload and set up your own customised icons.

MXS Strada Preconfigured Pages

Two Digital Outputs

MXP features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order  to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

MXS Strada Two Digital Outputs

Camera inputs, also for mirror camera

Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management.

MXS Strada Flexible Alarms

Integrated shift light array

Choose from a host of advanced multicoloured RGB shift light patterns that can be customised as you like and also for each unique gear when required.

MXS Strada Flexible Alarms

Expand the system according to your needs

GPS Module


Thanks to GPS05 Module (included in the kit) and its GPS Manager software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique
GPS09 Module

Channel Expansion

It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

Channel Expansion

TC Hub

It adds 4 K thermocouples.

TC Hub

LCU-One CAN

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.

LCU-One CAN

SmartyCam HD cameras

The on-board cameras that overlays on videos the data sampled by your logger.
SmartyCam HD Rev.2

Memory Module

Thanks to the SD Card, Memory Module can record all your data in a file that can be downloaded on your PC for post-analysis. Memory Module, with 16Gb capability, can be connected via CAN-Bus to MXL2 and to all AiM loggers.

Memory Module

Aim MXP Connection Examples

MXP Strada Connection Examples

CAN output

With the CAN Output you can send messages directly  to an existing CAN network in order to improve  the range of vehicle control possibilities.

MXP Strada Connection Examples

A wide range of data sources

MXP is the dash logger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 7″ display makes it perfect for wide cockpits installation.



ECU connection
Analog/digital inputs
Math channels
Second CAN
GPS09 Module
