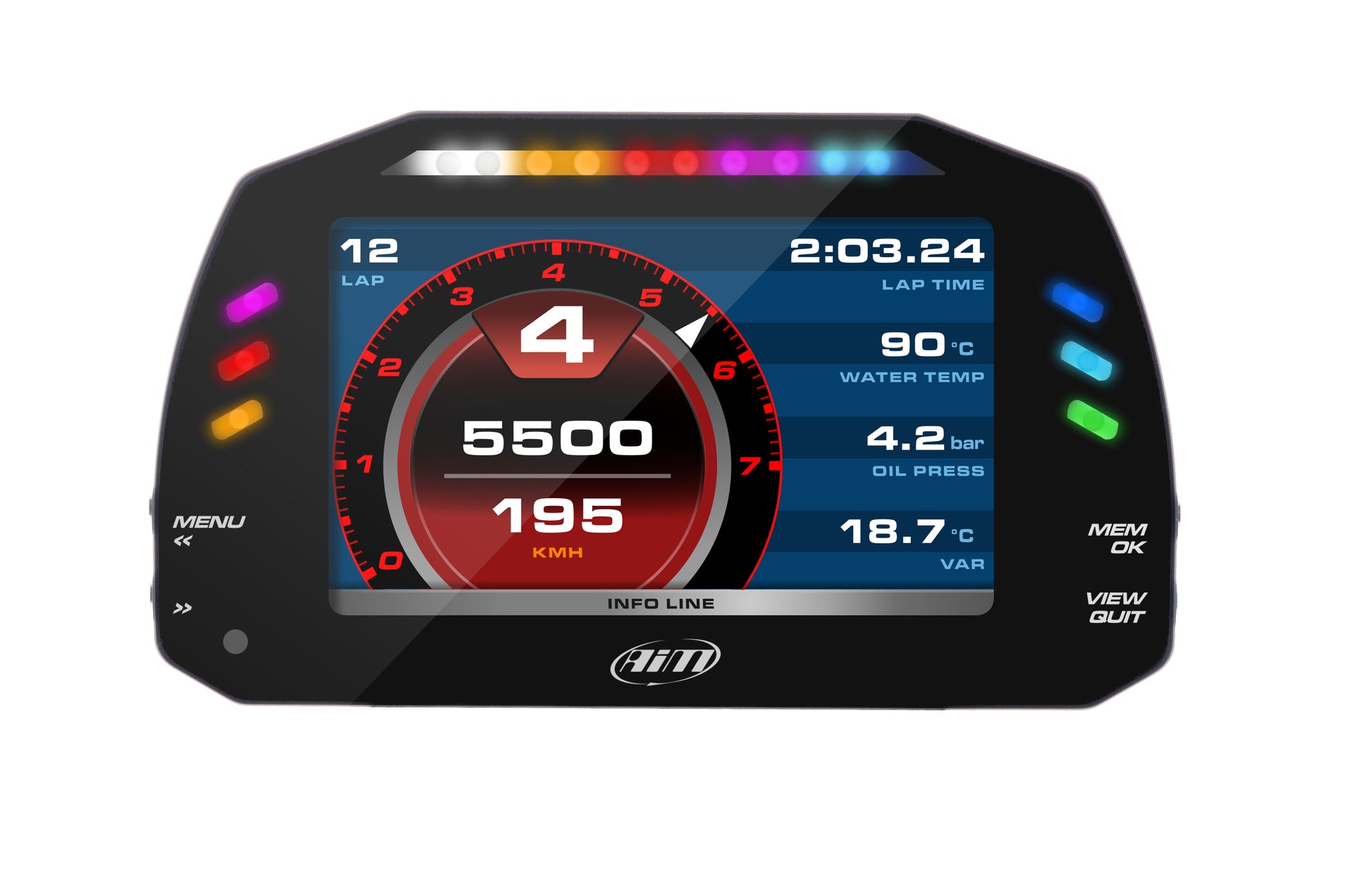

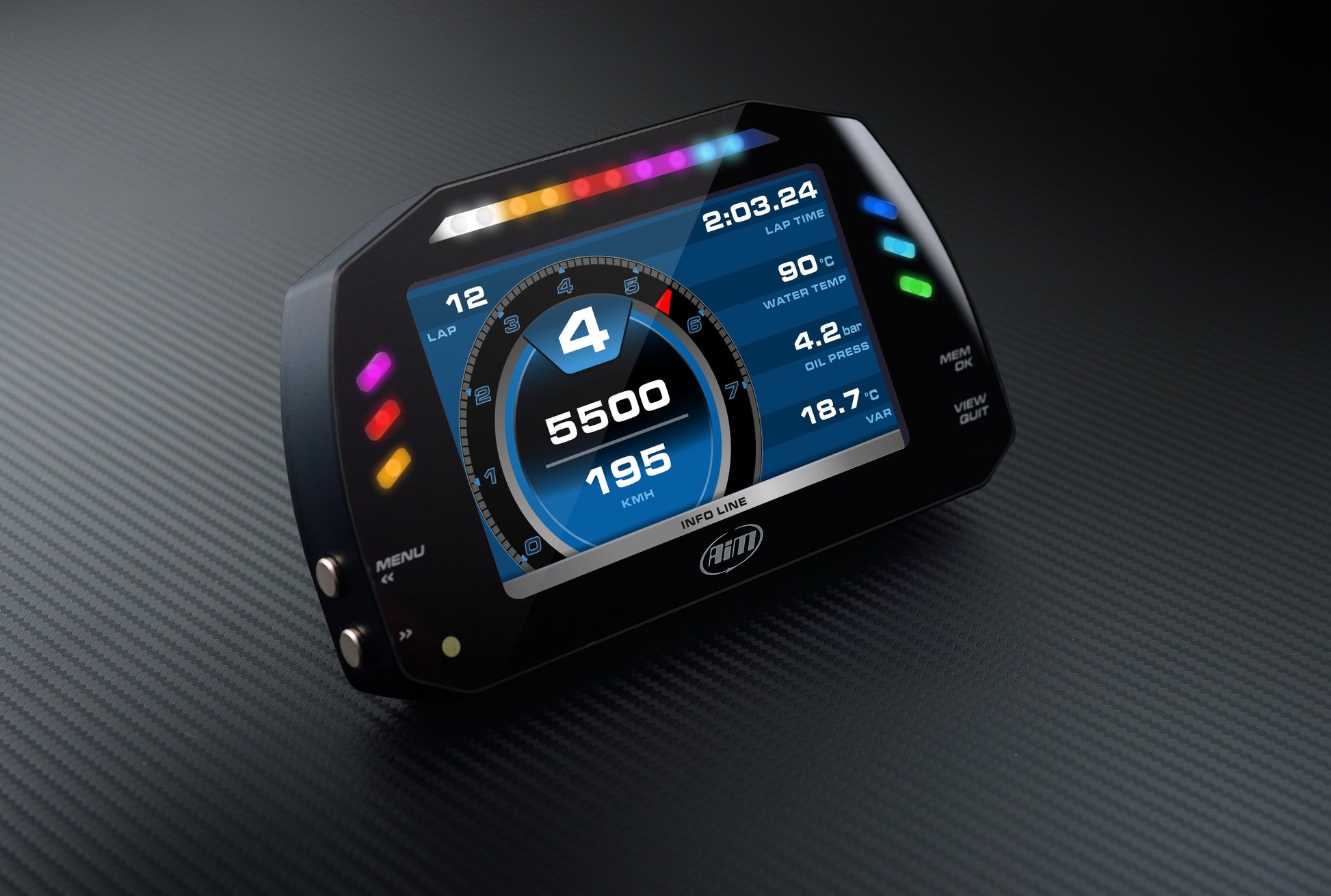

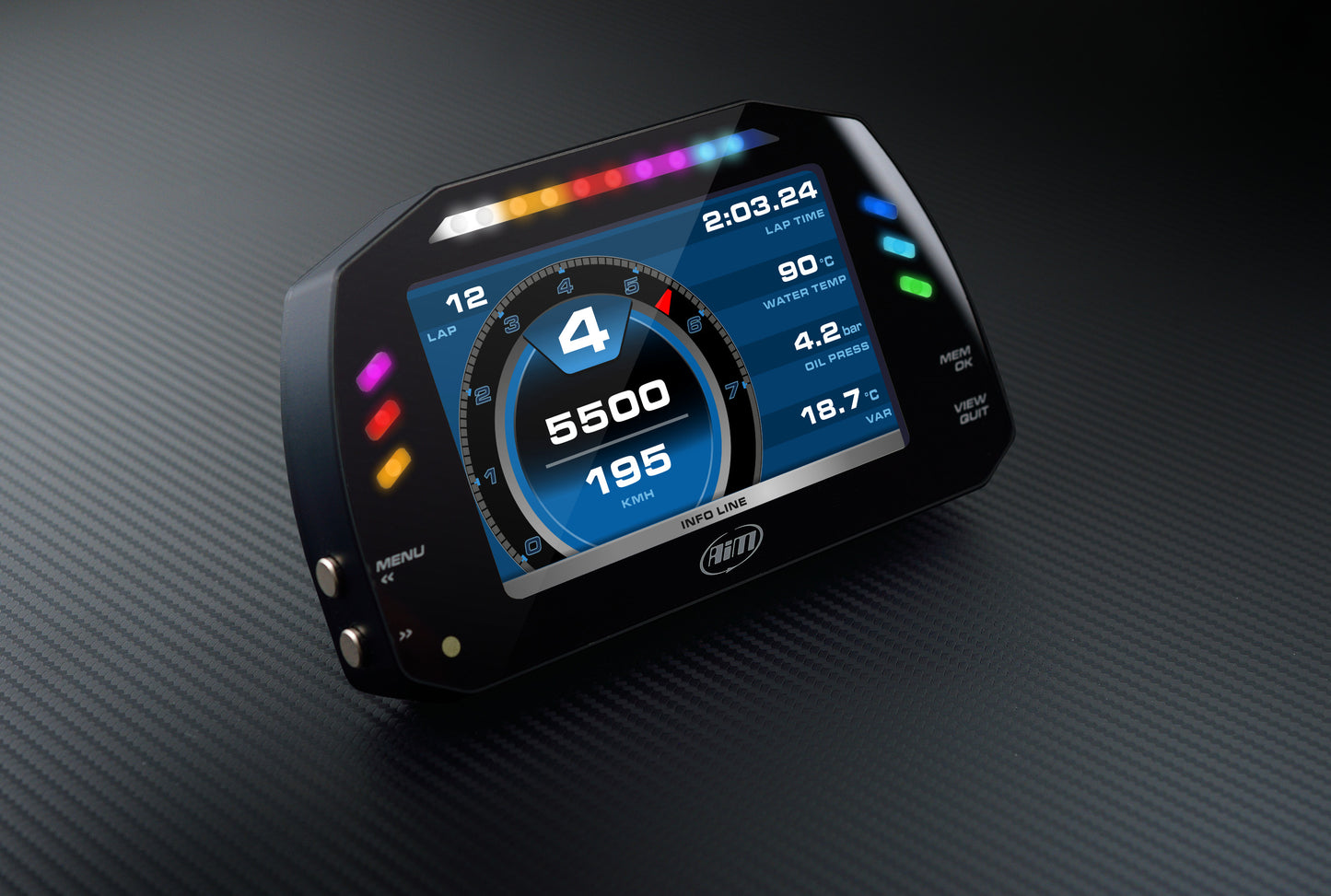

AIM MXS 1.2 Dash Data Logger
MXS 1.2, the evolution of MXS, is the dash logger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog / digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 5″ display has been specifically designed for installation in small cockpits.
Features:
• ECU Connection: Capable of acquiring data directly from the vehicle's ECU. Click here for a list of currently compatible ECU's.
• Analog & Digital Inputs: 8 Analog inputs record up to 1000x per second each. 6 Digital inputs are also included.
• GPS Module: AiM's powerful GPS05 module is included in the kit for accurate lap-time and track position data
• Secondary CAN-line: CAN2 line manages data from additional modules, such as ABS, traction-control, etc.
• Internal Accelerometer & Gyro: Internal 3-Axial accelerometer and a gyroscope for crucial vehicle motion data.
• Math Channels: Configure the dash to immediately display Math Channel values, such as brake bias or a calculated gear.
In The Box
- MXS 1.2
- GPS Module with cable
- USB cable
- 37 pins standard harness
- Race Studio 3 software.
CAN Output
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

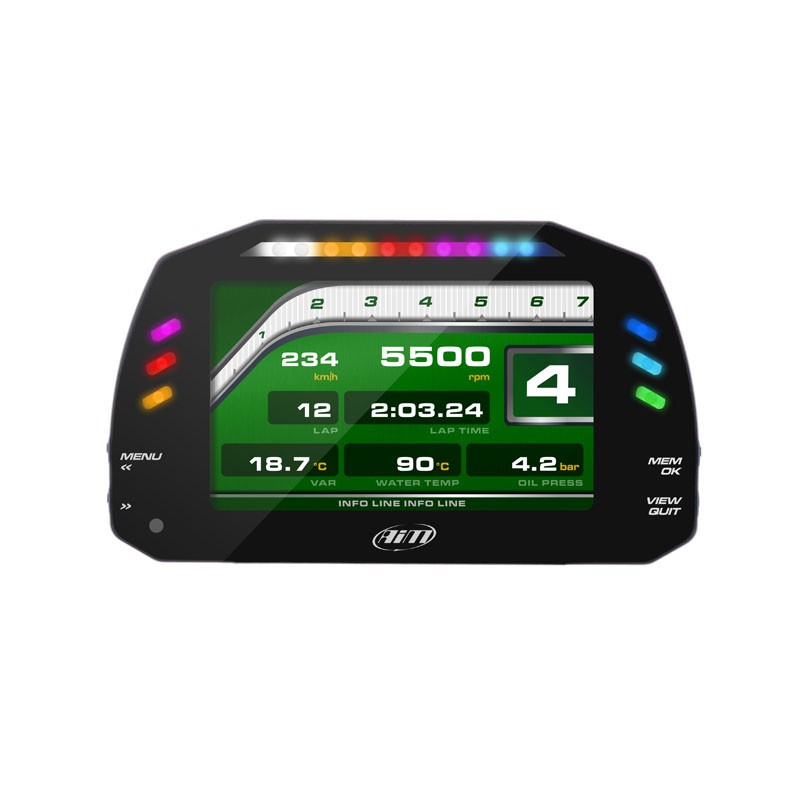

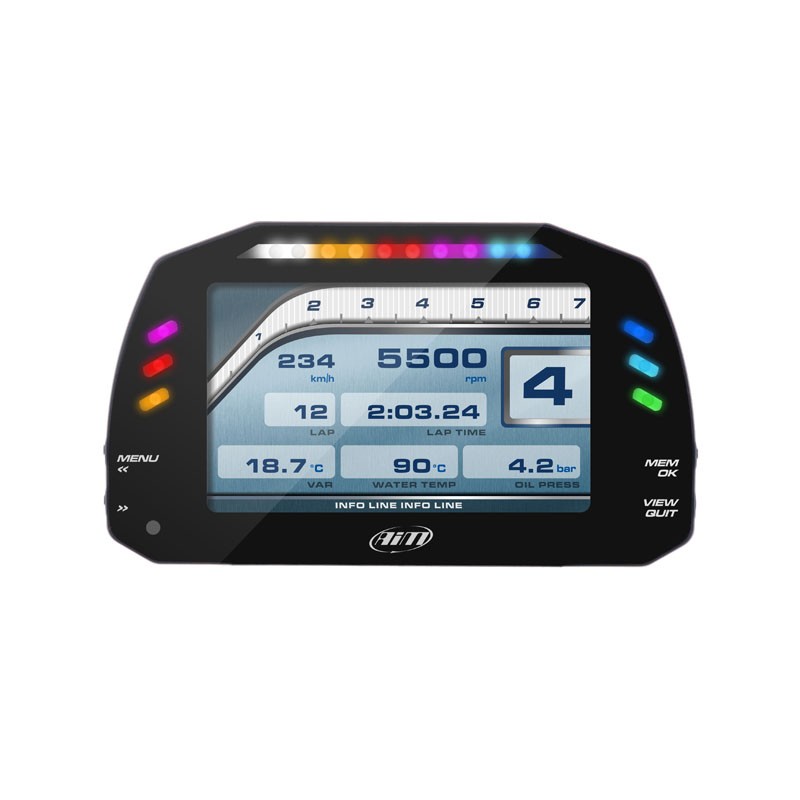

Freely Configurable Pages
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two push buttons.

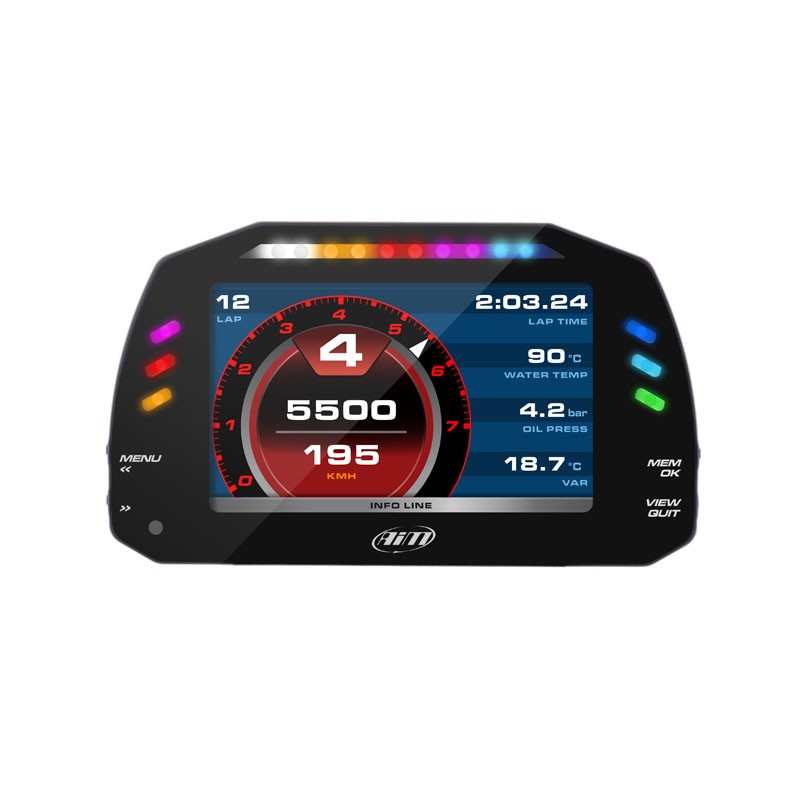

High Contrast TFT Display
A high contrast TFT display identifies MXS 1.2 at the first glance. An ambient light sensor keeps the back-light at optimum brightness levels.
Flexible Alarms
MXS 1.2 features six configurable RGB alarm LED’s. You choose the conditions, you choose the colours. Select a solid alarm or flashing alarm along the flashing frequency. Choose to have an accompanying text message and set the alarm priorities.
Two Digital Outputs
MXS 1.2 features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
Camera inputs, also for mirror camera
Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management.
Integrated Shift Light Array
Choose from a host of advanced multicoloured RGB shift light patterns that can be customized to your liking, and for each unique gear when required. Using the built-in CAN bus, you can add expansion modules to the Aim MXS to increment the performance and the data acquired:
Expand the system according to your needs
GPS ModuleThanks to GPS05 Module (included in the kit) and its GPS Manager software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique |
 |
Channel ExpansionIt permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed. |
 |
TC HubIt adds 4 K thermocouples. |
 |
LCU-One CANWide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion. |
 |
SmartyCam HD camerasThe on-board cameras that overlays on videos the data sampled by your logger. |
 |
Memory ModuleThanks to the SD Card, Memory Module can record all your data in a file that can be downloaded on your PC for post-analysis. Memory Module, with 16Gb capability, can be connected via CAN-Bus to MXL2 and to all AiM loggers. |
 |
Connection Example
A wide range of data sources

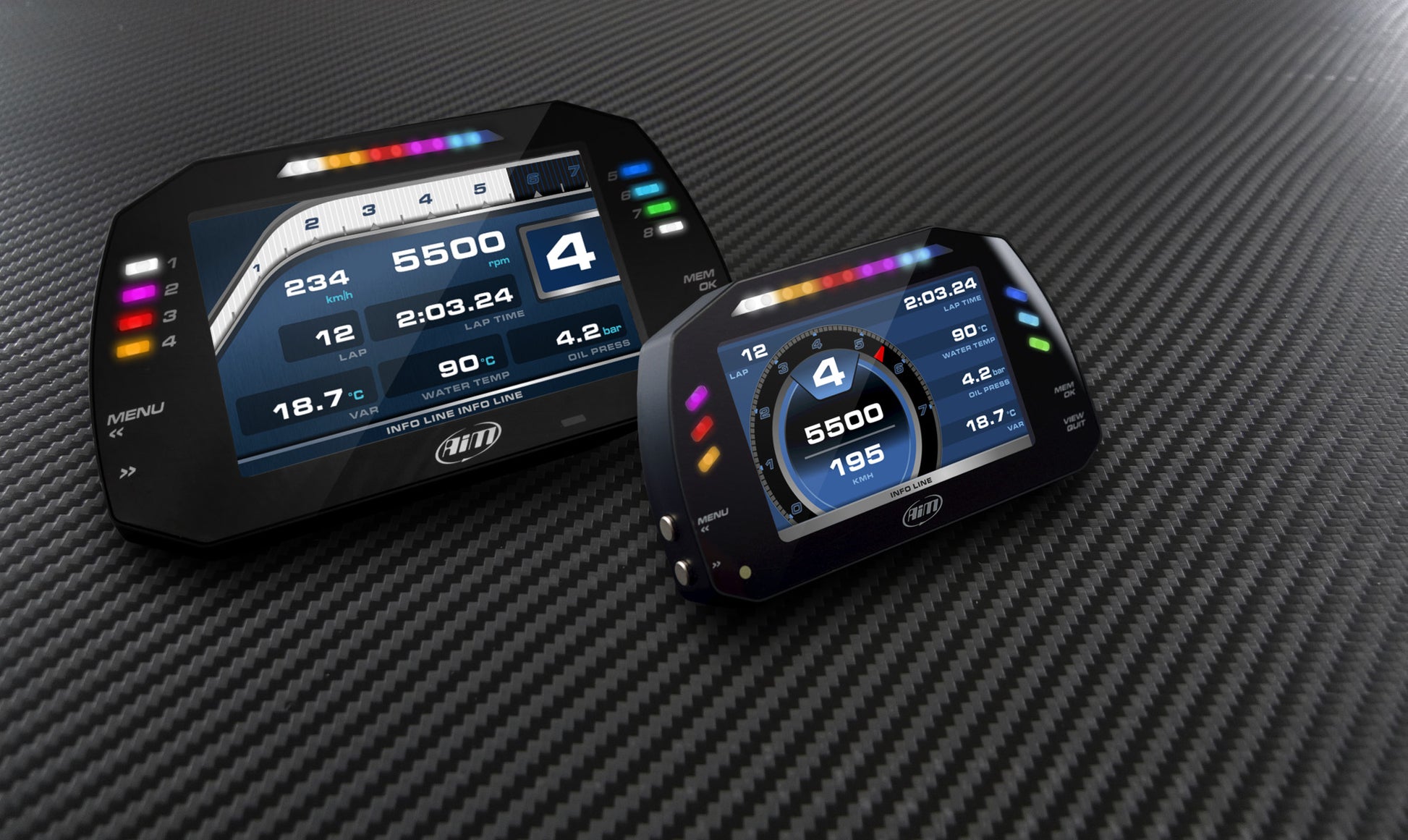

Aim MXS Strada 1.2 is the dash logger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 7″ display makes it perfect for wide cockpits installation.
