AIM MXS 1.2 Strada Dash Display

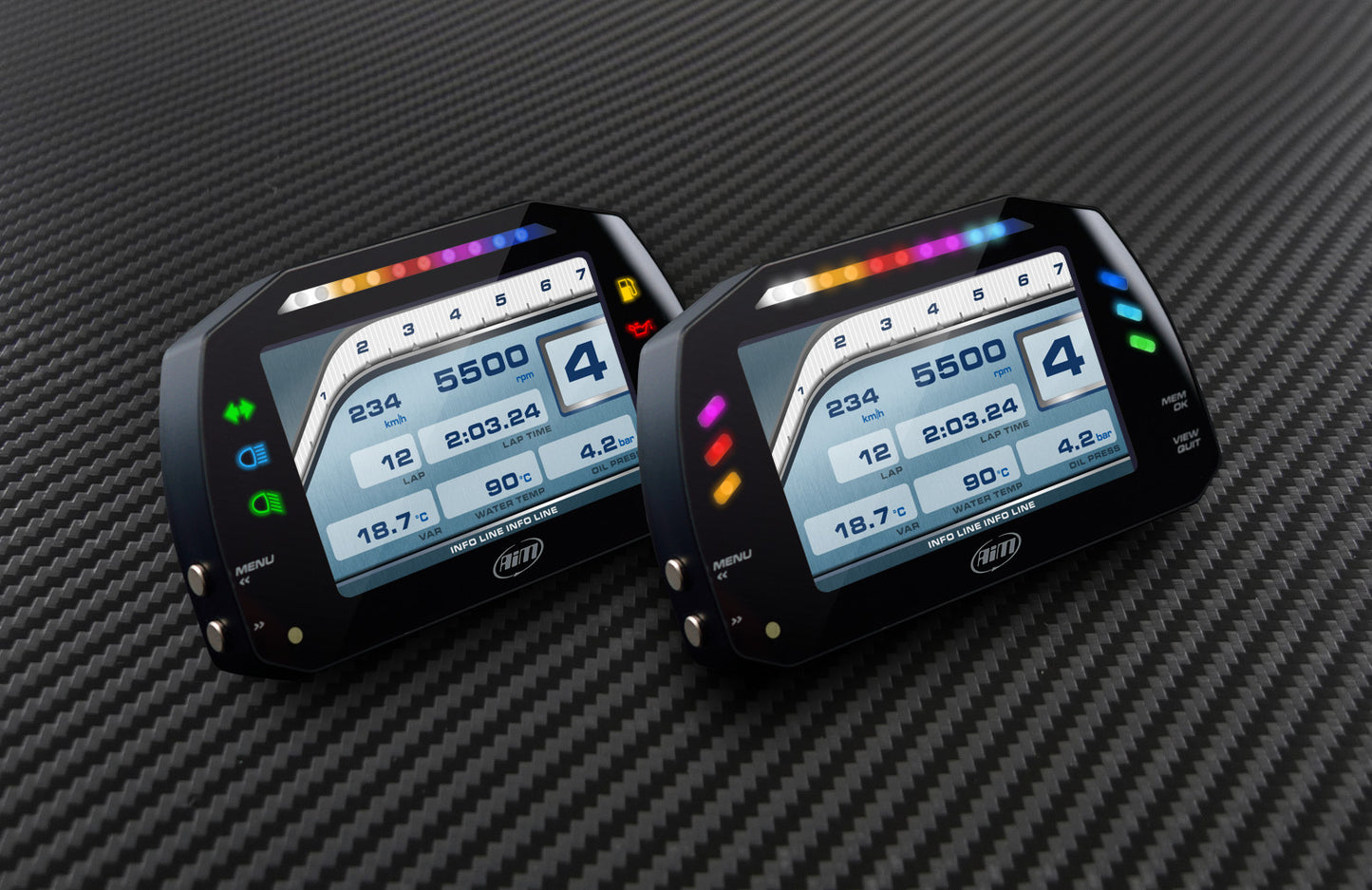

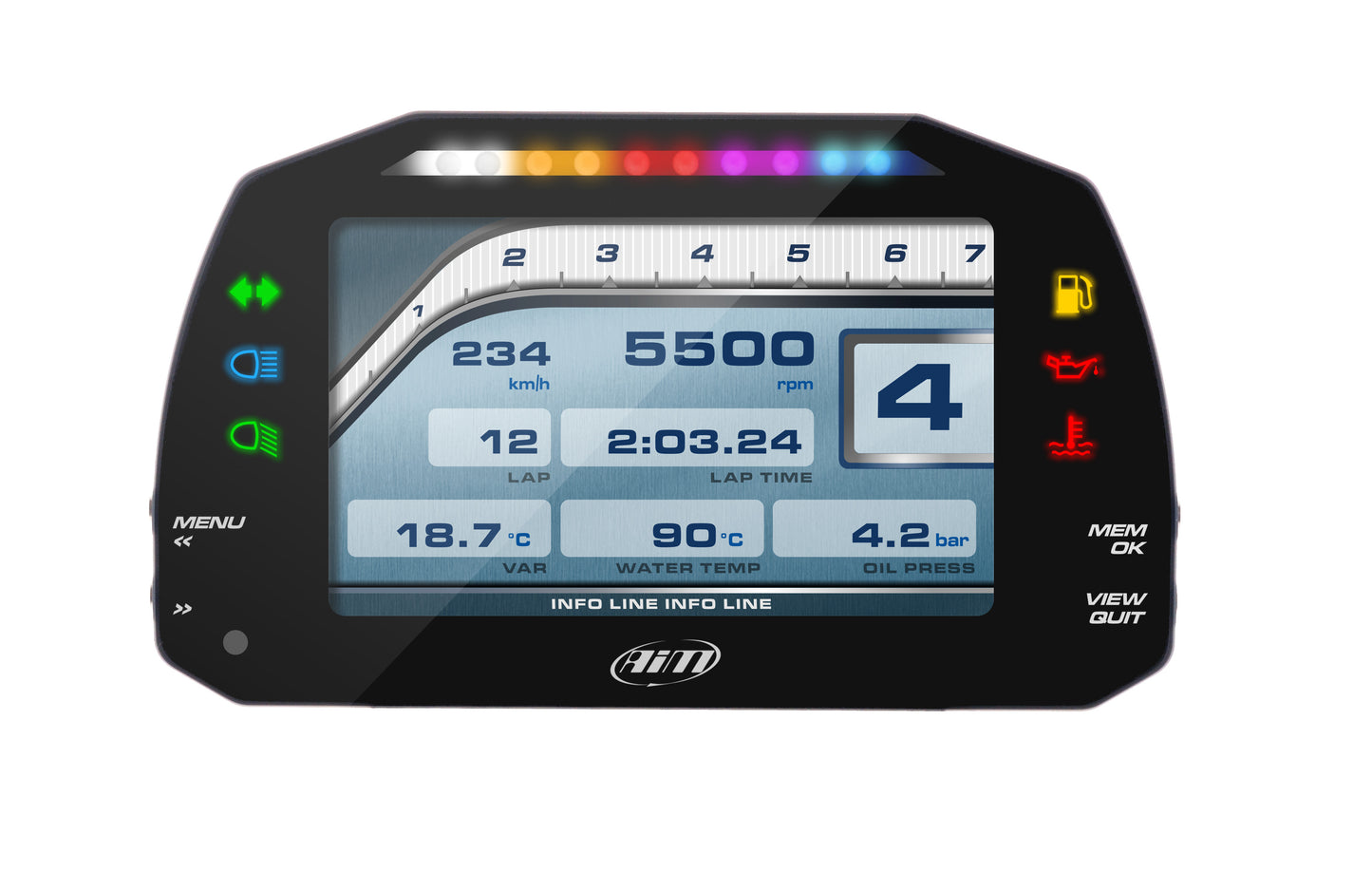

The AiM MXS 1.2 Strada dash is one of the most widely used dashes on tracks and streets around the globe. The MXS 1.2 Strada dash has a 5" colour TFT display which has been designed to give a great visual impact, configurable to show all the information coming from the ECU analogue  / digital inputs, pre-defined math channels and an optional GPS Module.

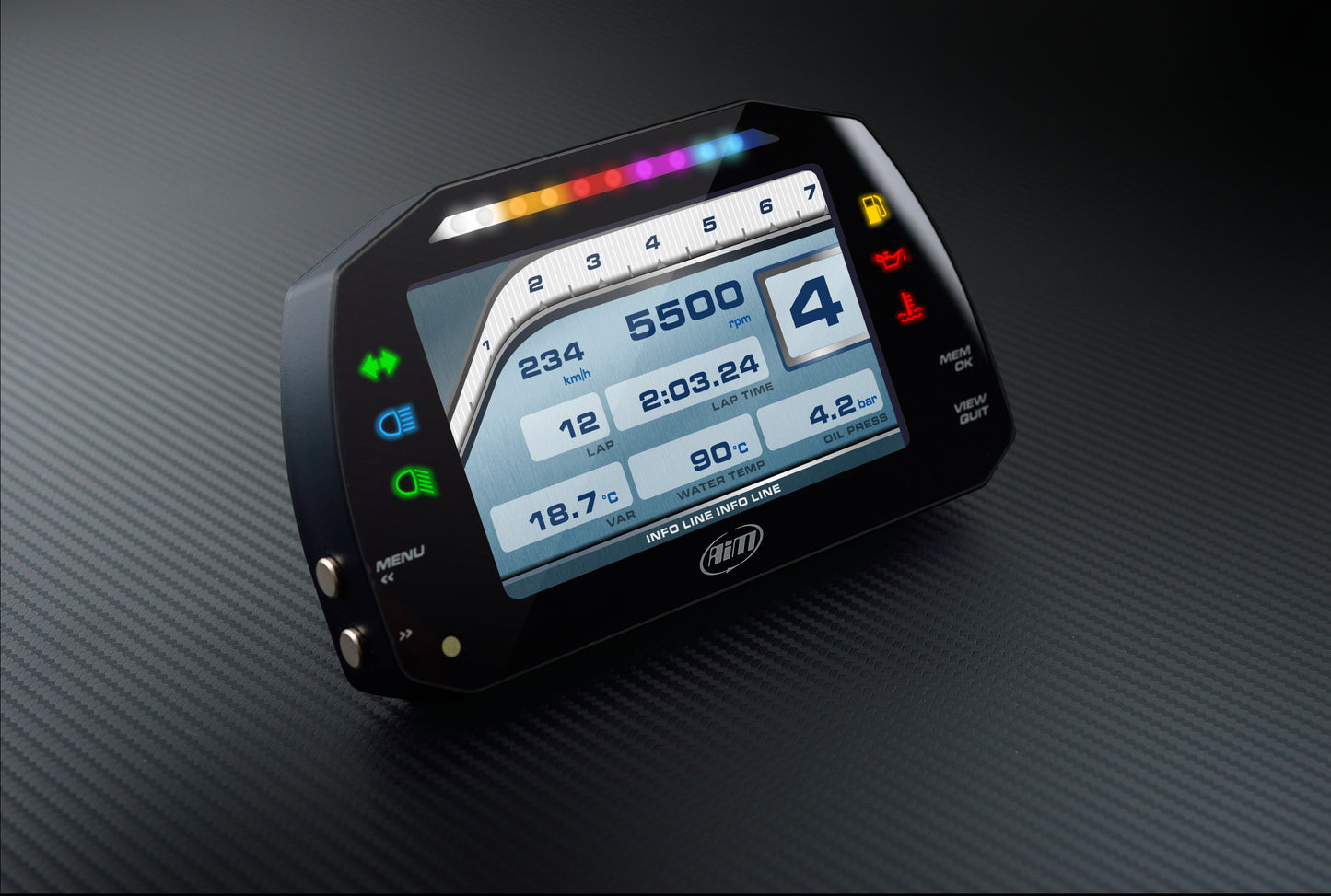

The MXS 1.2 Strada has a wide contrast TFT display, its visual quality is optimised as its ambient light sensor keeps the back light at the best brightness.

MXS 1.2, the evolution of MXS, is the dash logger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog / digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 5″ display has been specifically designed for installation in small cockpits.

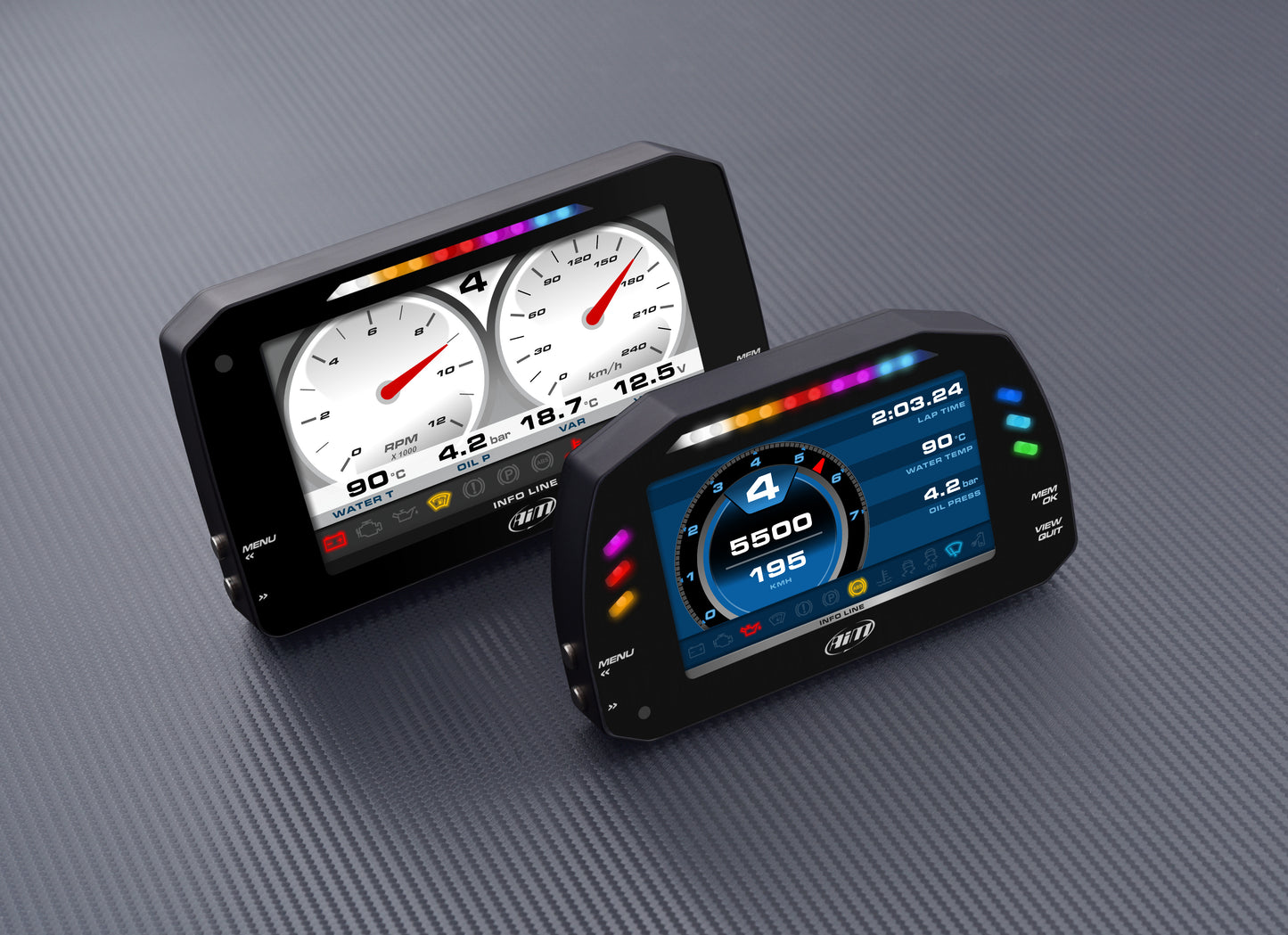

Freely Configurable Pages

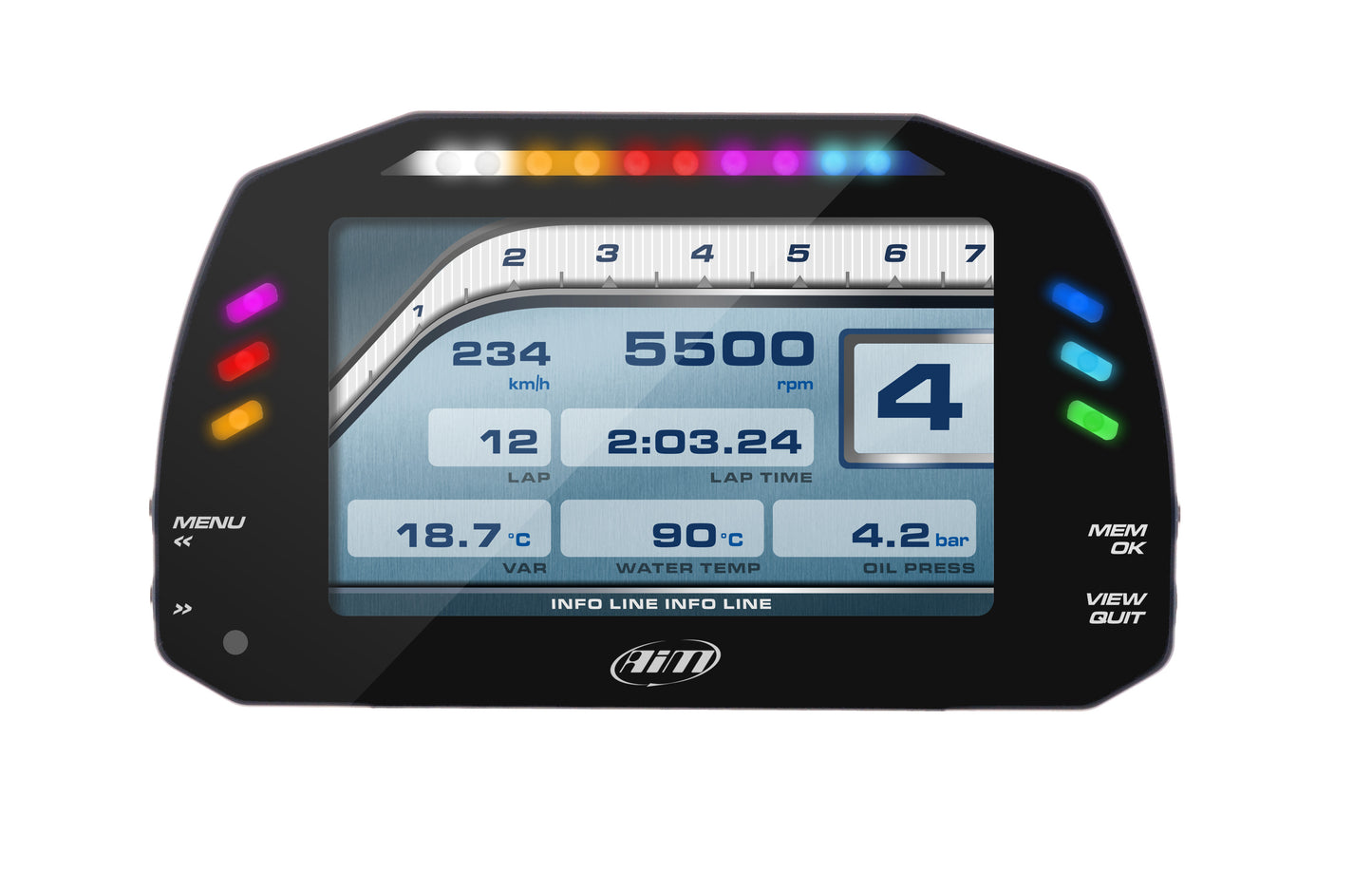

You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two push buttons.

CAN Output

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

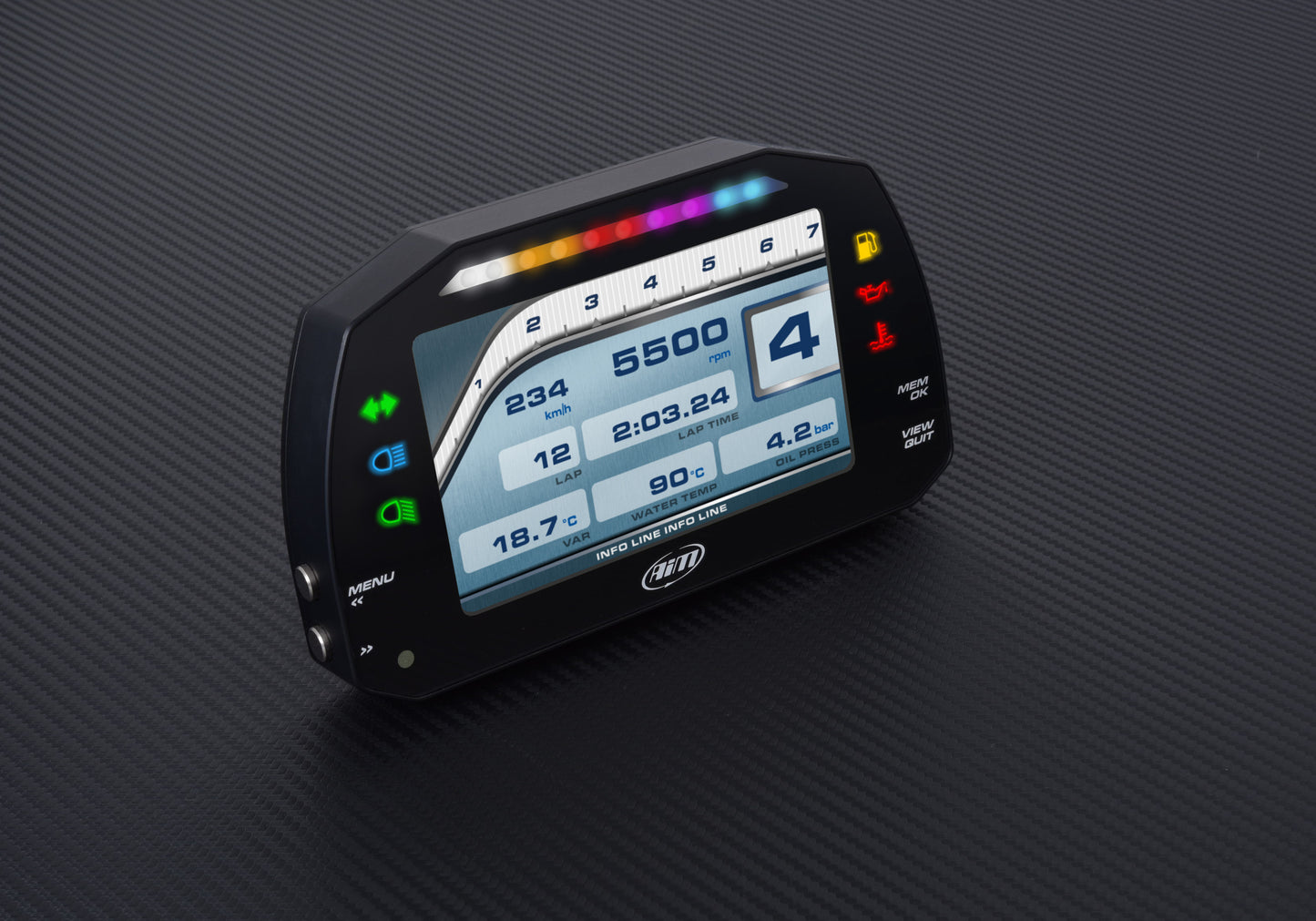

High Contrast TFT display

A high contrast TFT display identifies MXS 1.2 at the first glance. An ambient light sensor keeps the back-light at optimum brightness levels.

Flexible Alarms

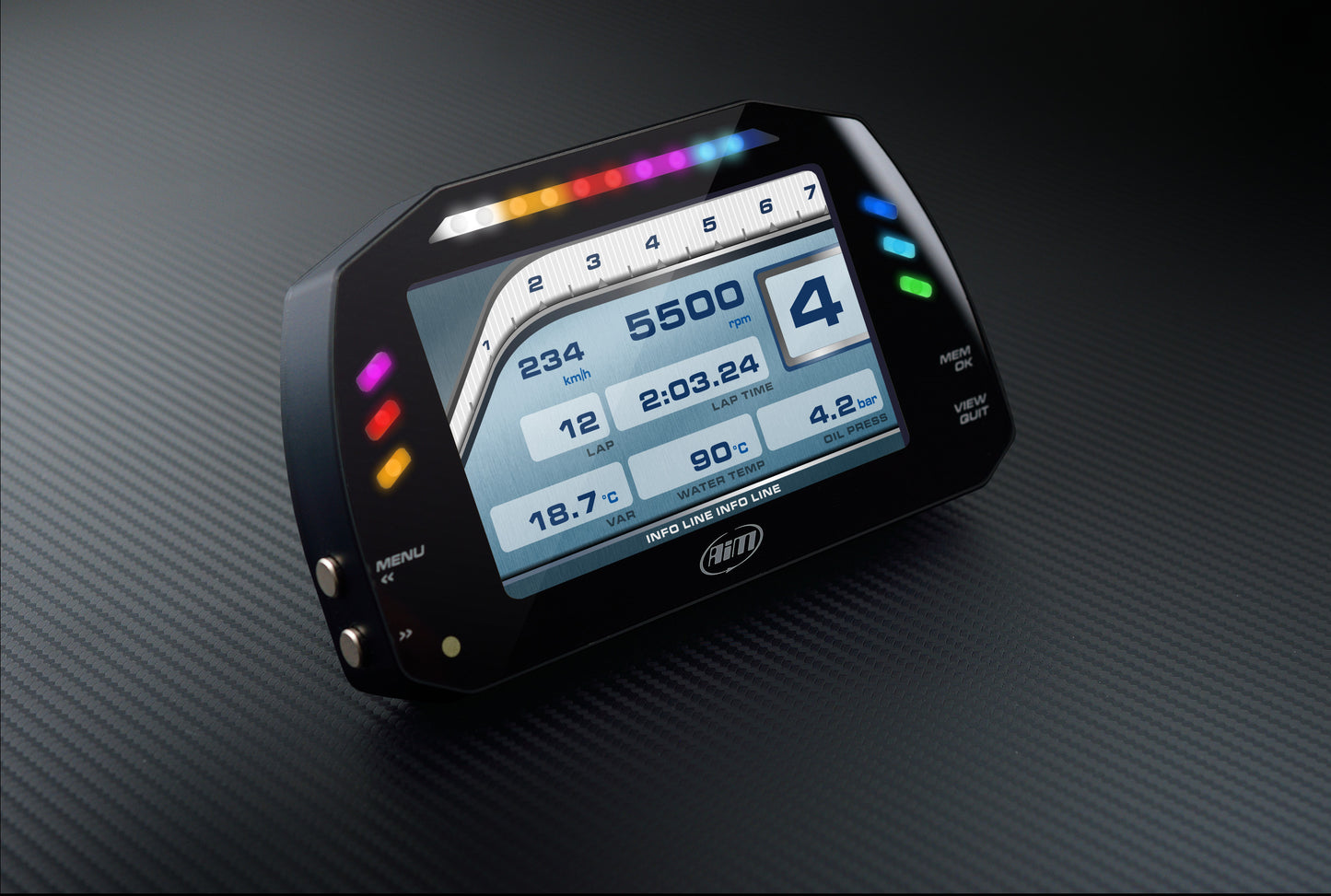

MXS 1.2 features six configurable RGB alarm LED’s. You choose the conditions, you choose the colours. Select a solid alarm or flashing alarm along the flashing frequency. Choose to have an accompanying text message and set the alarm priorities.

Two Digital Outputs

MXS 1.2 features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

Integrated Shift Light Array

Choose from a host of advanced multicoloured RGB shift light patterns that can be customized to your liking, and for each unique gear when required. Using the built-in CAN bus, you can add expansion modules to the Aim MXS to increment the performance and the data acquired:

Expand the system according to your needs

GPS09 Module Thanks to GPS09 Module and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.
Channel Expansion It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.
TC Hub It adds 4 K thermocouples.
LCU-One CAN Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.
SmartyCam HD cameras The on-board cameras that overlays on videos the data sampled by your logger.
Memory Module Thanks to the SD Card, Memory Module can record all your data in a file that can be downloaded on your PC for post-analysis. Memory Module, with 16Gb capability, can be connected via CAN-Bus to MXL2 and to all AiM loggers.

Aim MXS Strada Connection Examples

A wide range of data sources

Aim MXS Strada 1.2 is the dash logger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 7″ display makes it perfect for wide cockpits installation.
